PLASTIC INJECTION MOLDING

Cofan’s plastic injection molding is a widely used manufacturing process designed to produce large volumes of plastic parts with high precision and consistency. This process is integral to many industries due to its efficiency and ability to create complex shapes with fine details.
The injection molding process starts with plastic pellets, which are the raw material. These pellets are fed into a heated barrel where they are gradually melted by the combined action of heat and the shearing action of a screw inside the barrel. The molten plastic is then pushed forward by the screw and injected under high pressure into a mold cavity. The mold is a precisely machined tool that contains a negative impression of the desired part’s shape.
Once the molten plastic fills the mold cavity, it is held under pressure to ensure it completely fills the mold and captures all the details. The plastic is then allowed to cool and solidify within the mold. Cooling is a critical phase as it determines the final properties and dimensions of the part. Efficient cooling channels are often designed within the mold to expedite this process.
After the plastic has solidified, the mold opens, and ejector pins push the finished part out of the mold cavity. The mold then closes, and the cycle repeats. This entire cycle can be completed in a matter of seconds to minutes, depending on the part’s size and complexity, making injection molding highly suitable for mass production.
One of the primary advantages of plastic injection molding is its ability to produce parts with very high precision and repeatability. The process can create intricate designs with fine details, thin walls, and complex geometries that would be challenging to achieve with other manufacturing methods. Additionally, injection molding allows for the incorporation of various features such as threads, inserts, and over molding (where one material is molded over another).
The versatility of plastic injection molding is also evident in the range of materials that can be used. Thermoplastics, thermosetting plastics, elastomers, and even some composite materials can be injection molded. This flexibility allows manufacturers to select materials based on the required mechanical properties, chemical resistance, color, and cost considerations.
In terms of applications, plastic injection molding is ubiquitous across multiple industries. In the automotive industry, it is used to produce components like dashboards, bumpers, and interior trims. In consumer goods, it is used for items such as toothbrushes, toys, and kitchen utensils. The electronics industry relies on injection molding for parts like housings, connectors, and enclosures, while the medical industry uses it for devices, components, and even surgical instruments.

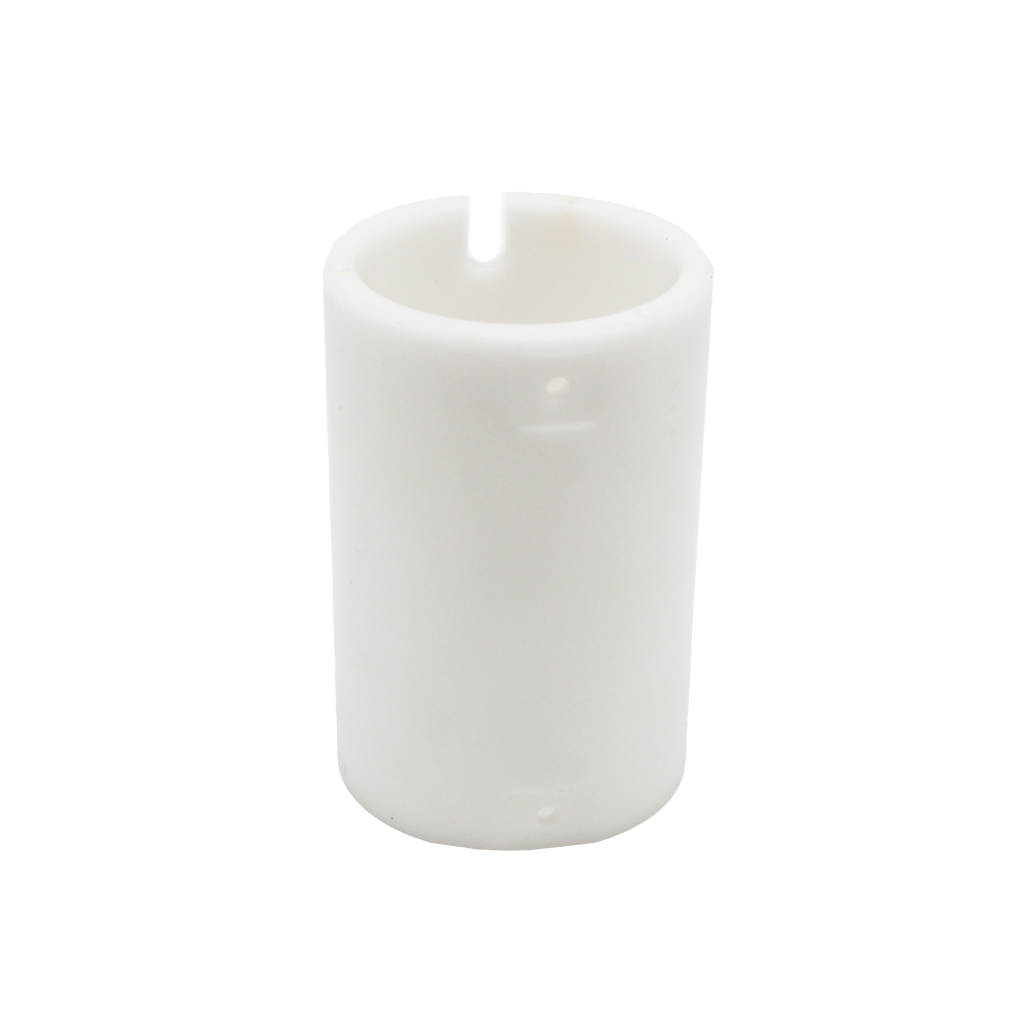

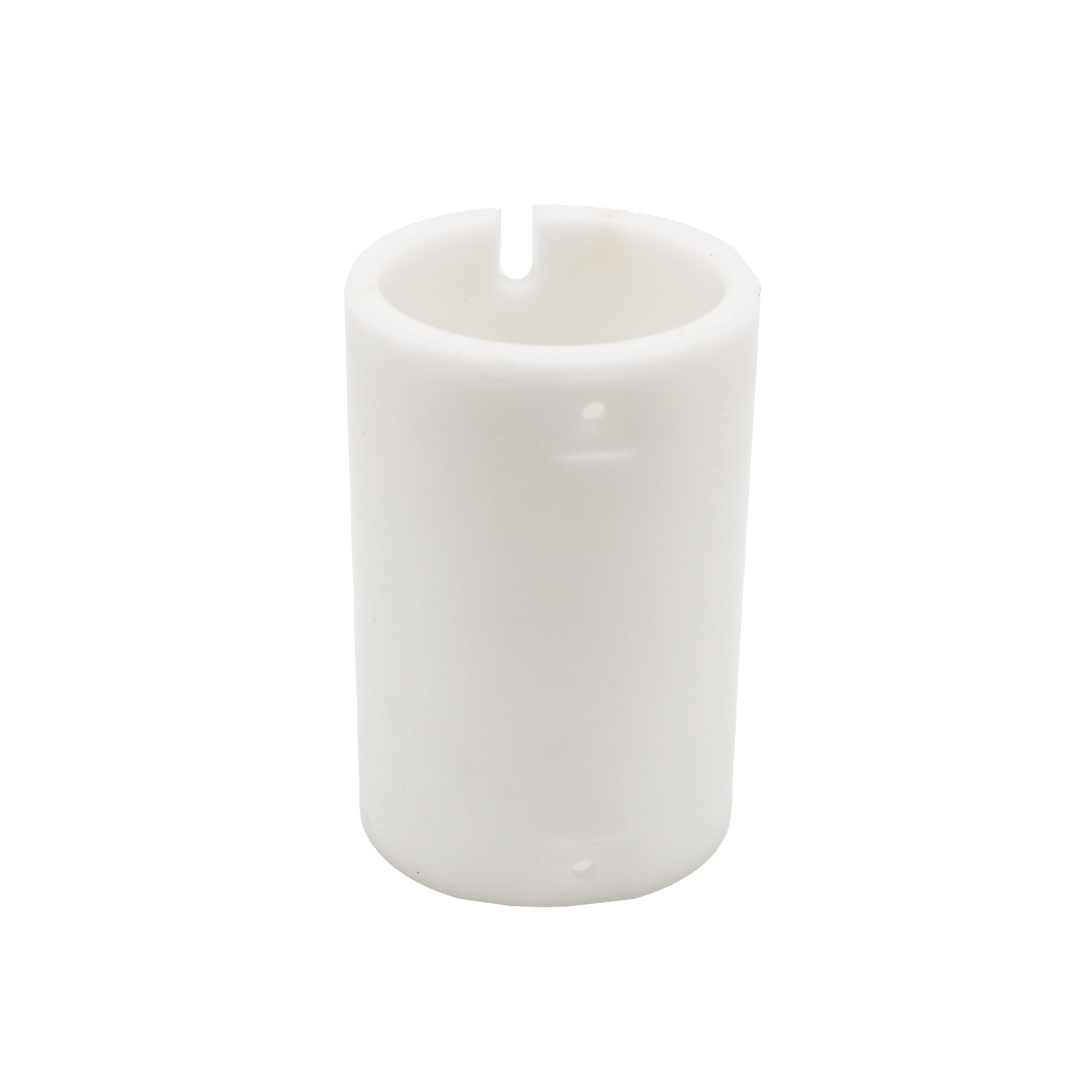

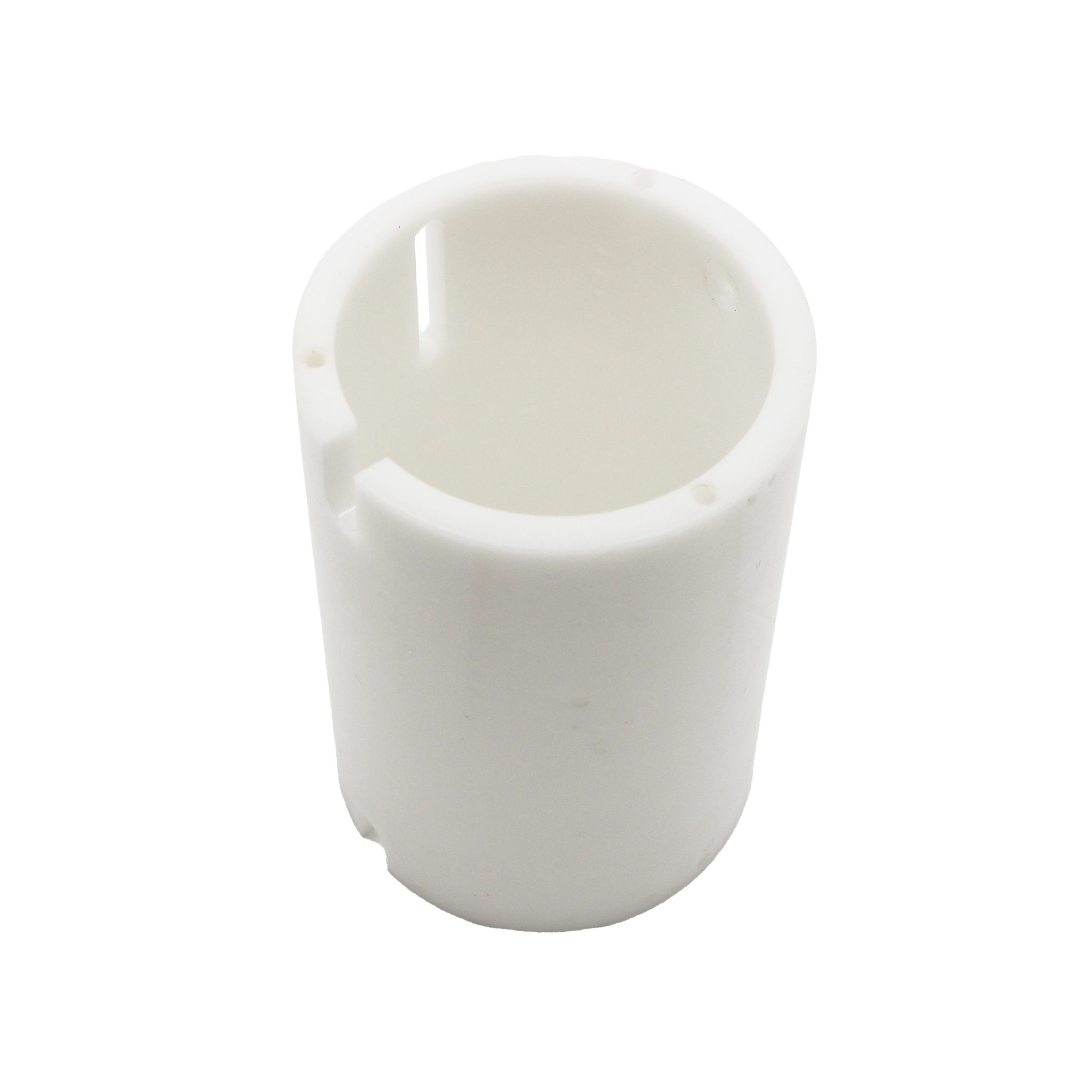

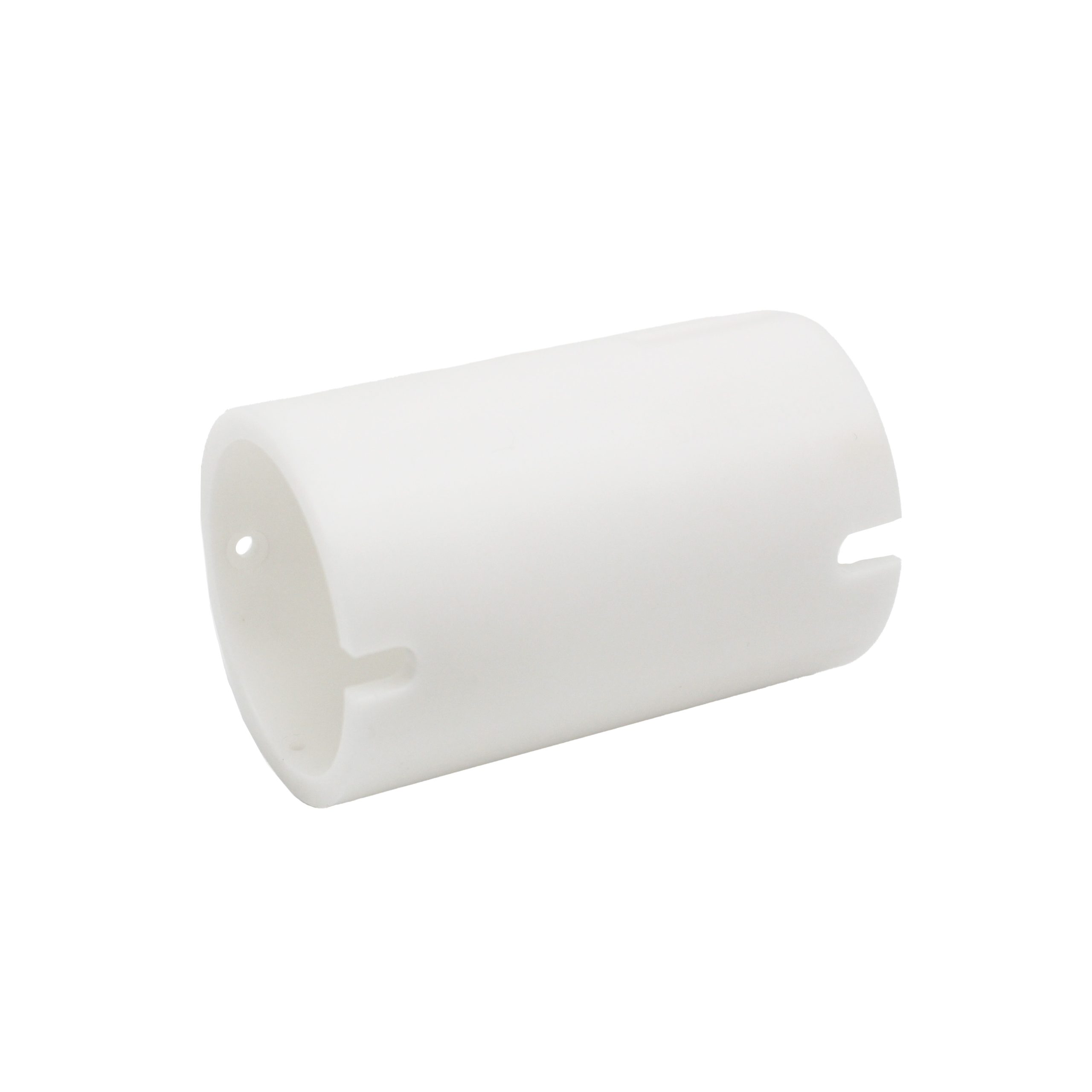

- PLASTIC INJECTION MOLD

Type: Plastic Injection
Brand Name: Cofan Thermal
Place of Origin: Dongguan, China
Application: Tube, Cable management
Delivery Time: 4 Weeks L/T

- Product Information -

Place of Origin:
Dongguan, China
OEM:
Yes
Process:
Injection
Brand Name:
Cofan Thermal
Material:
Lexan 3413R resin
Shape:
Cylinder
Application:
Tube, Cable management
Size:
73 x 73 x 110mm

- PLASTIC INJECTION MOLD

Type: Plastic Injection
Brand Name: Cofan Thermal
Place of Origin: Dongguan, China
Application: Tube, Cable management
Delivery Time: 4 Weeks L/T

- Product Information -

Place of Origin:
Dongguan, China
OEM:
Yes
Process:
Injection
Brand Name:
Cofan Thermal
Material:
Lexan 3413R resin
Shape:
As Shown in the Picture
Application:
Tube, Cable management
Size:
20 x 20 x 82mm

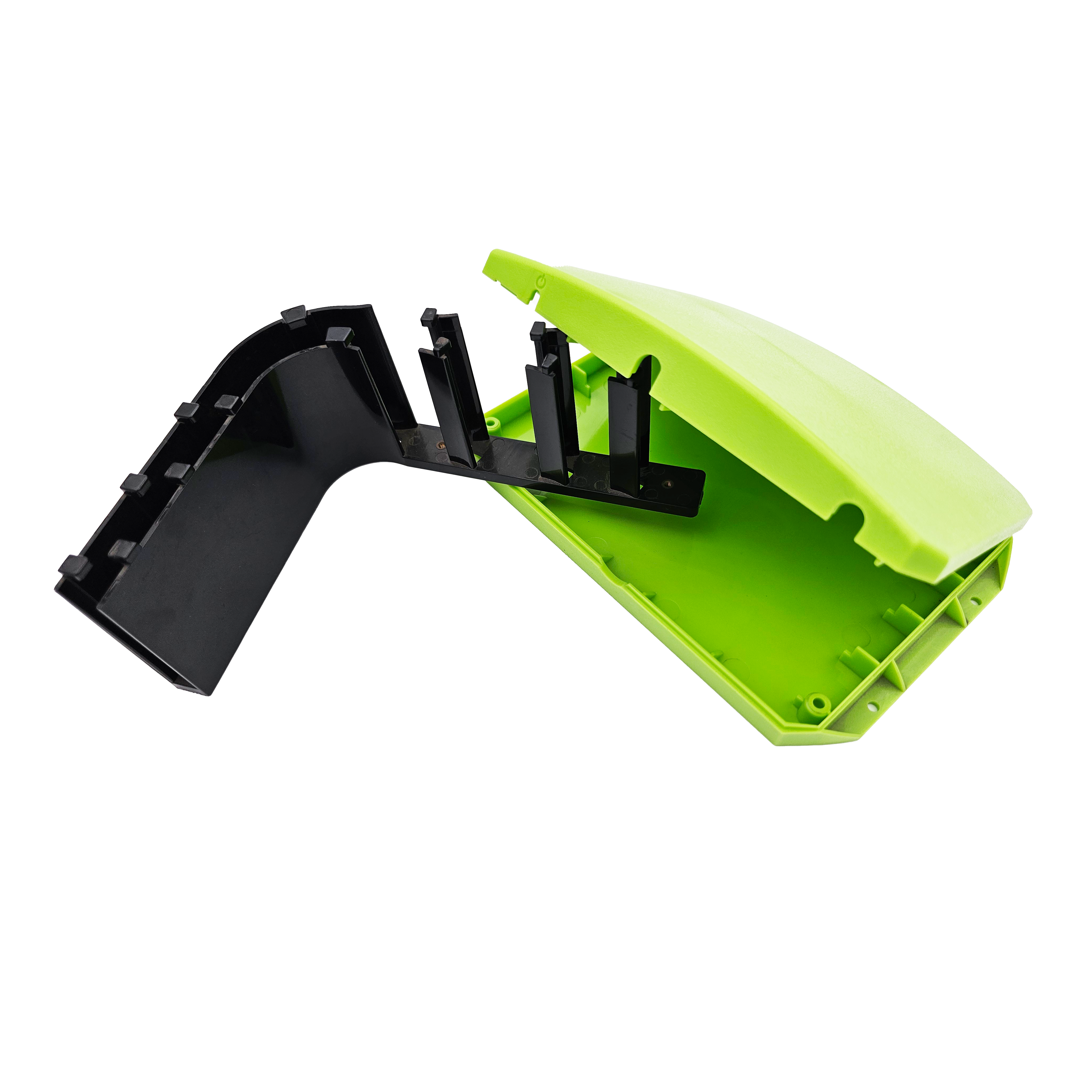

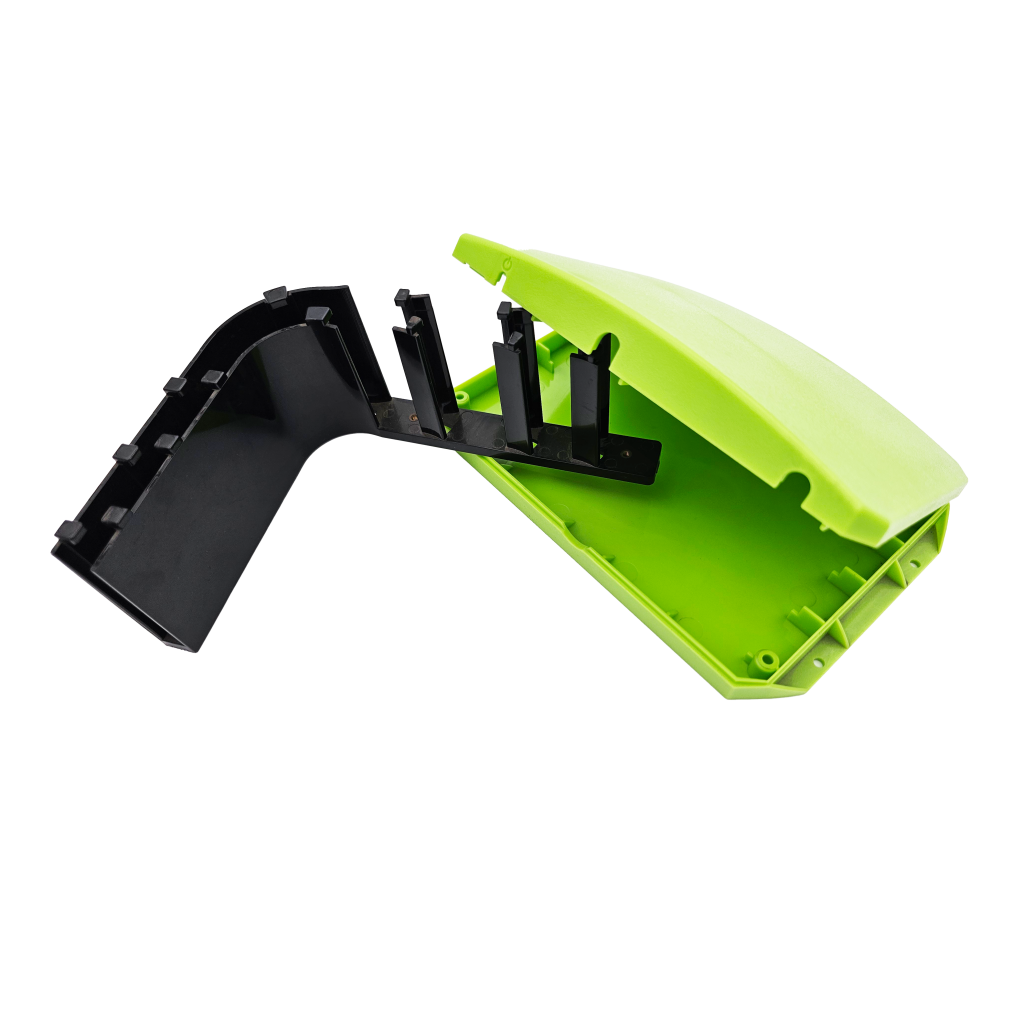

- PLASTIC INJECTION MOLD

Type: Plastic Injection
Brand Name: Cofan Thermal
Place of Origin: Dongguan, China
Application: Connector, Cable management
Delivery Time: 4 Weeks L/T

- Product Information -

Place of Origin:
Dongguan, China
OEM:
Yes
Process:
Injection
Brand Name:
Cofan Thermal
Material:
PBT
Shape:
As shwon in the picture
Application:
Connector, Cable management
Size:
33 x 18 x 15mm

− Cofan's PLASTIC INJECTION MOLDING Processes −

Cofan’s Plastic injection molding is a widely used manufacturing process for producing plastic parts and components. It involves injecting molten plastic into a mold cavity, where it cools and solidifies into the desired shape. Here are some key applications of plastic injection molding:

  1. Automotive Industry:

    • Components: Producing parts like dashboards, bumpers, interior panels, and engine components.
    • Benefits: High precision and repeatability ensure consistent quality and durability.

  2. Consumer Goods:

    • Products: Toys, kitchen utensils, storage containers, and electronic housings.
    • Benefits: Cost-effective for high-volume production, allowing for intricate designs and consistent quality.

  3. Medical Industry:

    • Devices: Syringes, surgical instruments, and housings for medical devices.
    • Benefits: Ability to produce sterile and precise components, essential for medical applications.

  4. Electronics:

    • Parts: Housings for smartphones, computers, remote controls, and connectors.
    • Benefits: Ensures tight tolerances and complex geometries needed for modern electronic devices.

  5. Packaging:

    • Containers: Bottle caps, jars, and other types of packaging.
    • Benefits: High-speed production and the ability to create lightweight, yet durable packaging solutions.

  6. Aerospace:

    • Components: Lightweight and strong parts used in aircraft interiors and systems.
    • Benefits: Reduces weight while maintaining strength and precision, critical for aerospace applications.
