Sheet Metal Fabrication: Materials, Types, and Applications
Sheet metal is a versatile material formed into thin, flat pieces through specialized fabrication processes. It is an essential component in manufacturing and metalworking, available in a wide range of thicknesses—from ultra-thin foils to heavy-gauge plates. Common base materials include steel, aluminum, copper, brass, and tin, each offering unique mechanical and corrosion-resistant properties for different industries.
Common Types of Sheet Metal
- Cold Rolled Steel (CRS) – Offers a smooth surface finish, tight tolerances, and excellent strength. Commonly used in precision manufacturing, automotive components, and industrial equipment.
- Hot Rolled Steel (HRS) – Cost-effective with a slightly rougher finish, ideal for construction, framing, and heavy-duty structural applications.
- Galvanized Steel – Zinc-coated to resist rust, making it perfect for outdoor use, roofing, siding, and corrosive environments.
- Stainless Steel – Highly resistant to rust, staining, and heat. Frequently used in kitchen appliances, food processing, medical equipment, and architectural projects.
Industries That Use Sheet Metal
- Automotive & Aerospace – Body panels, engine parts, brackets, and structural components.
- Construction – Roofing panels, siding, framing, HVAC ductwork, and architectural cladding.
- Consumer Goods – Appliances, enclosures, and decorative fixtures.
- Industrial Equipment – Machinery housing, conveyor systems, and manufacturing enclosures.
- Art & Design – Custom furniture, signage, and metal sculptures.
Sheet Metal Fabrication Processes
- Cutting – Shearing, laser cutting, plasma cutting, and water jet cutting.
- Bending – Press brakes, roll forming, and stamping.
- Punching – Creating holes, slots, or cutouts with punch presses.
- Forming – Deep drawing, spinning, and precision roll forming.
- Joining – Welding, riveting, and adhesive bonding for structural strength.
Advantages of Sheet Metal Fabrication
- Versatility – Can be shaped into custom designs for almost any application.
- Strength & Durability – Provides excellent structural integrity while remaining lightweight.
- Cost-Efficiency – Scalable production and wide material availability lower manufacturing costs.
- Sustainability – Fully recyclable, supporting eco-friendly manufacturing practices.

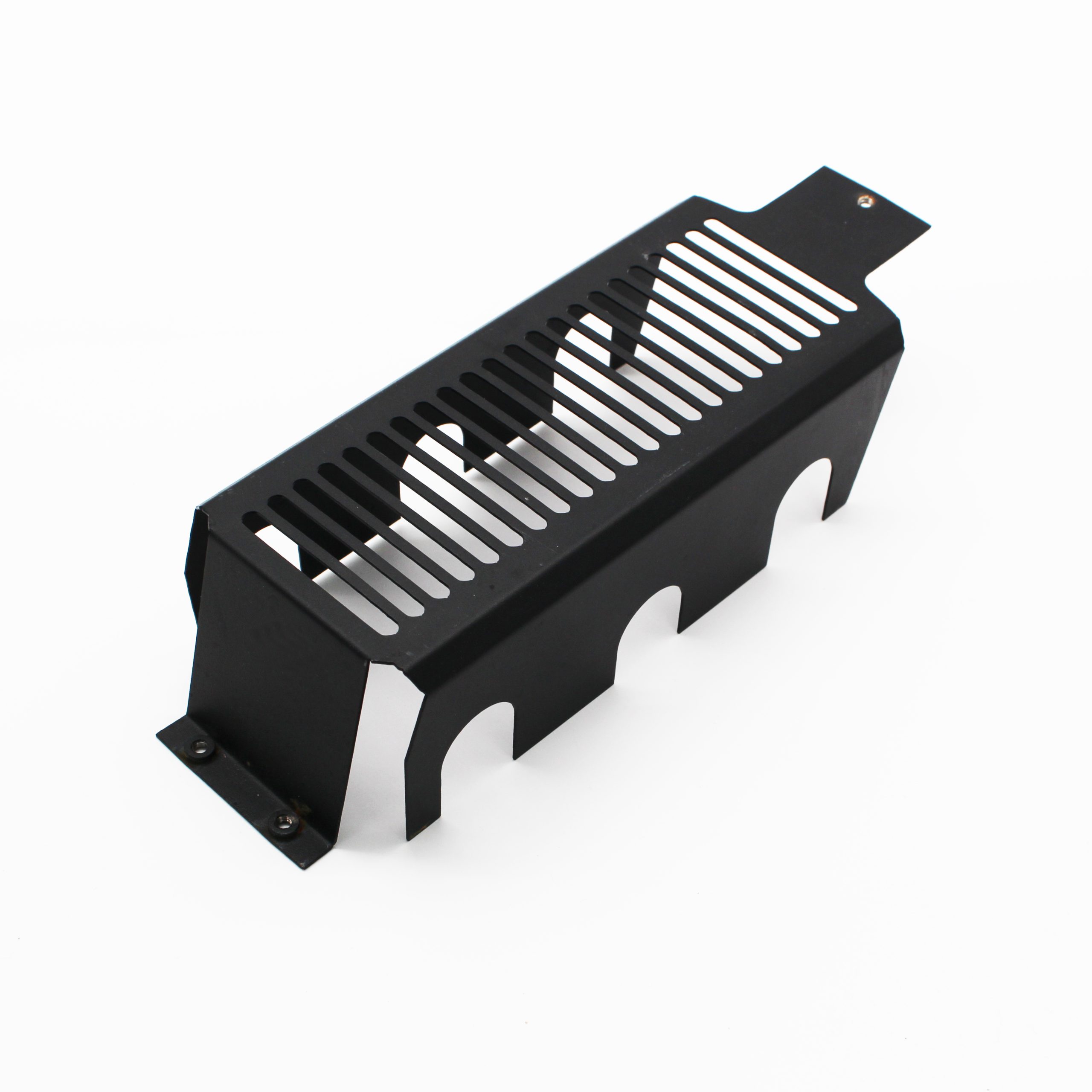

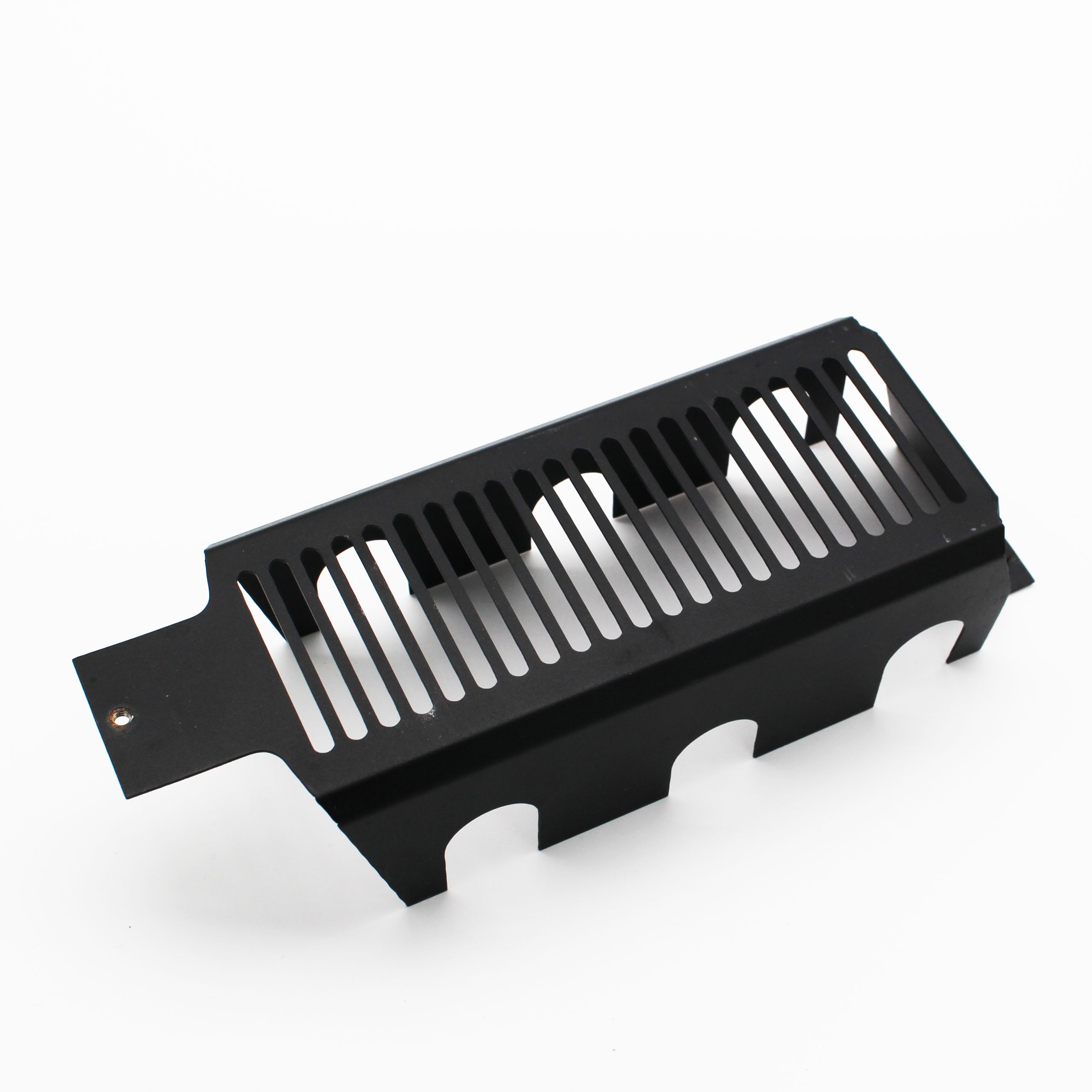

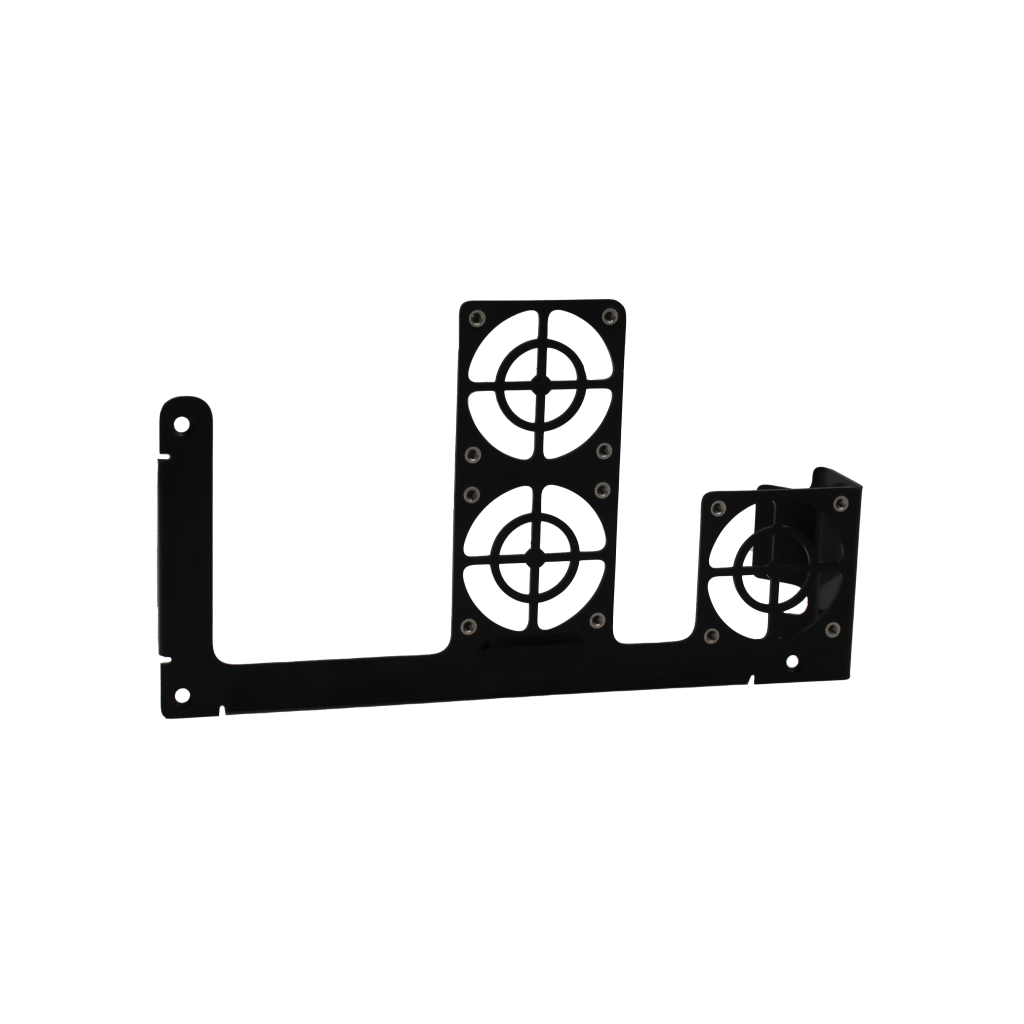

Product Information

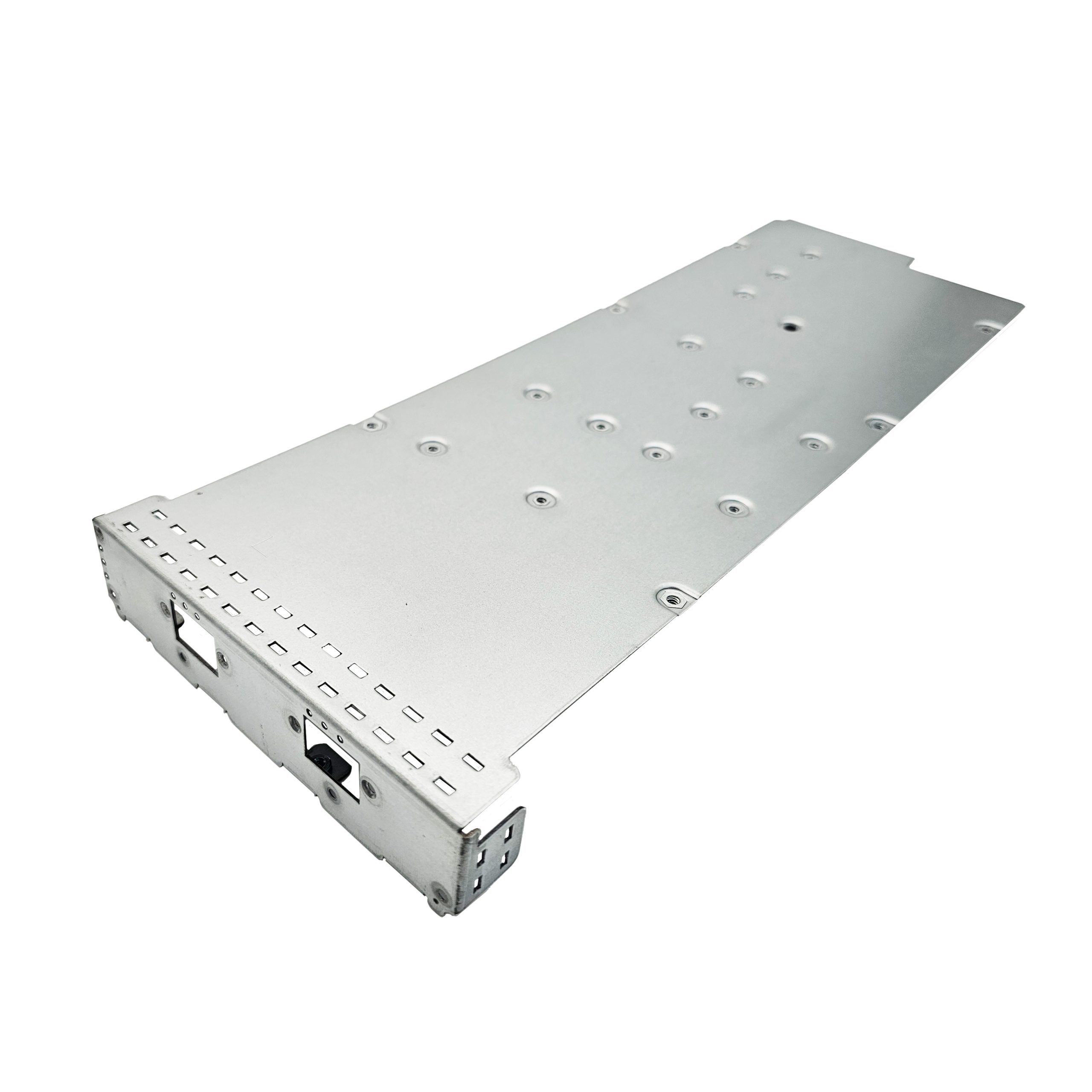

- Process: Bending, Cutting
- Material: Aluminum
- Application: Power Supply
- Finish: Anodizing

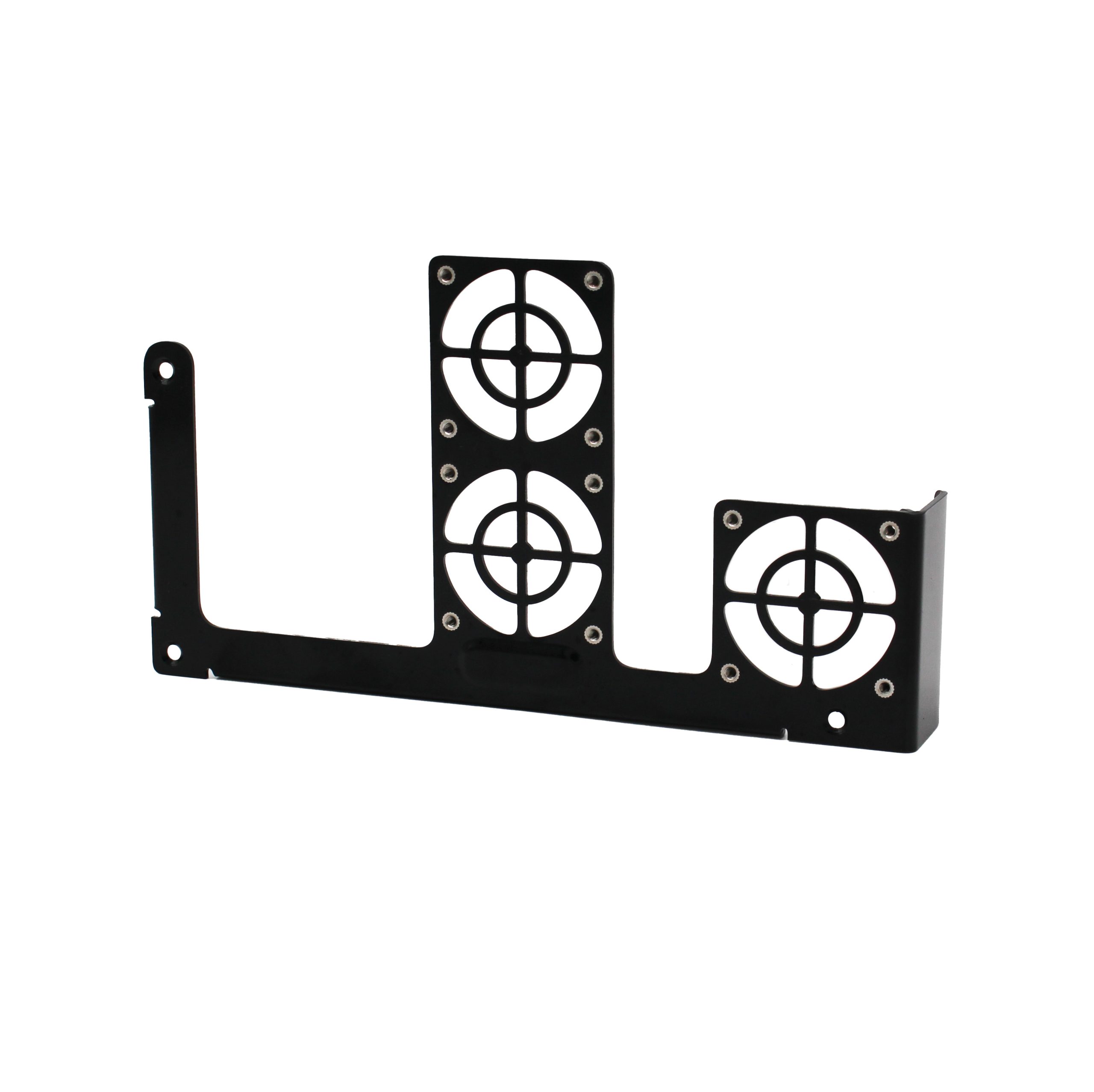

- Part No: 10.09.00012

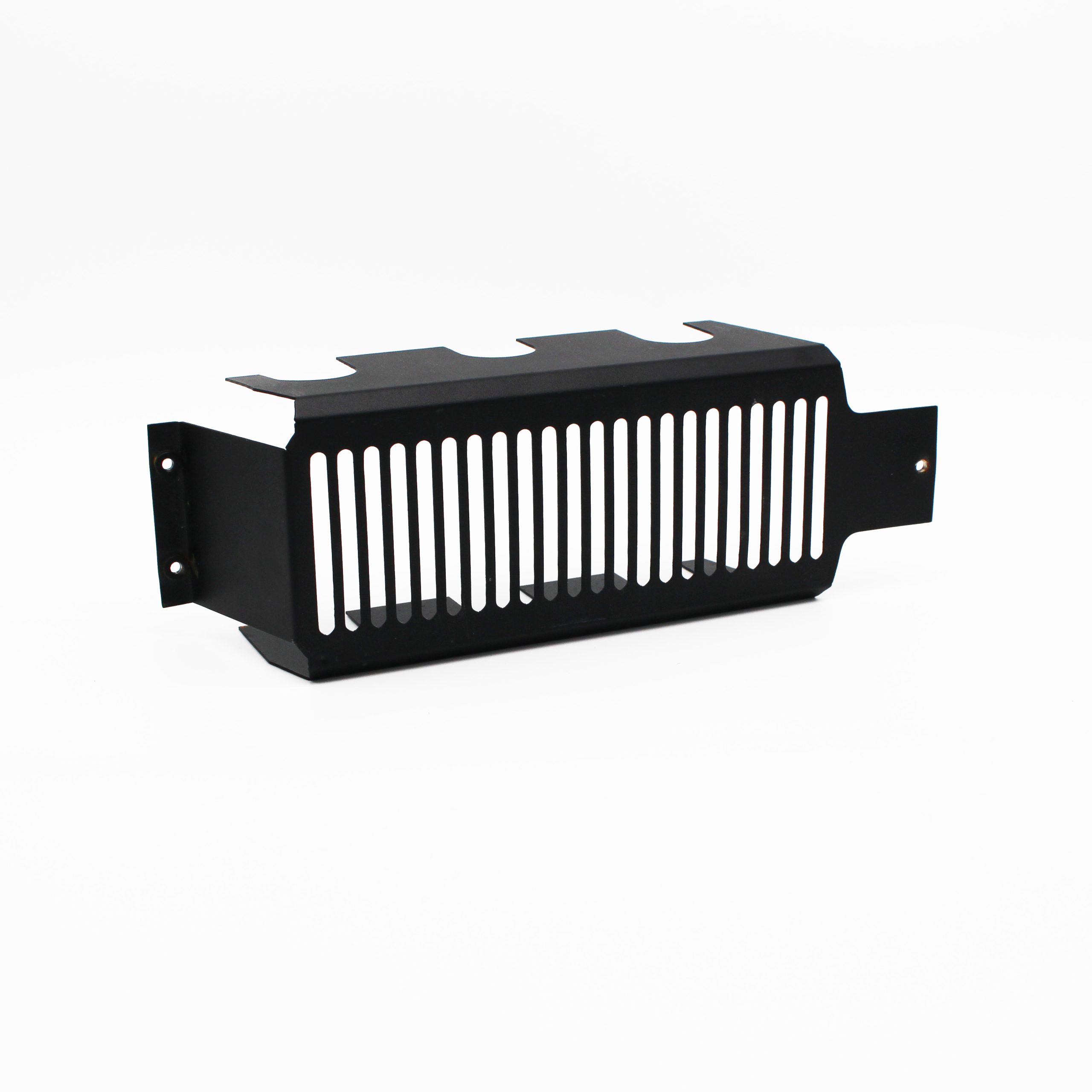

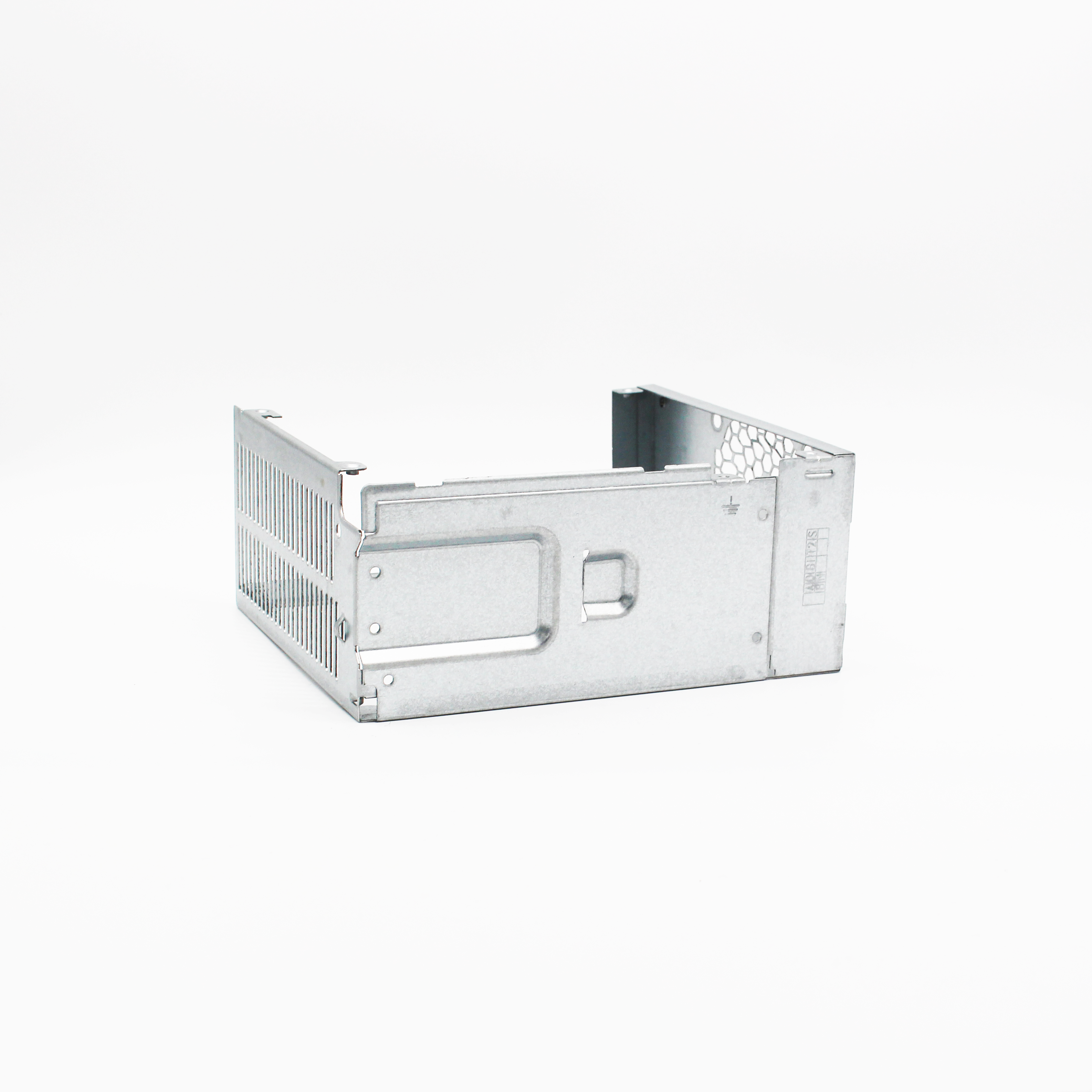

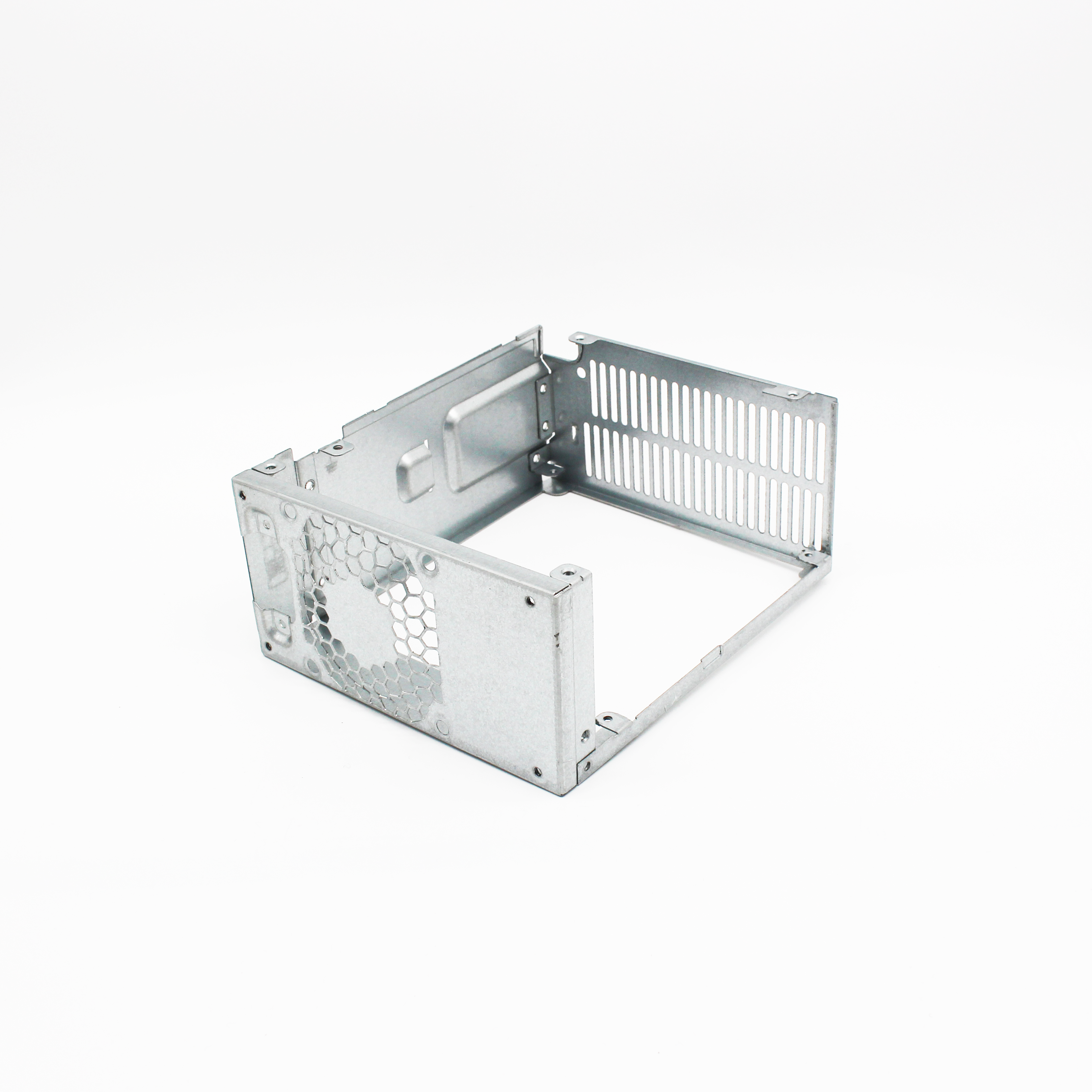

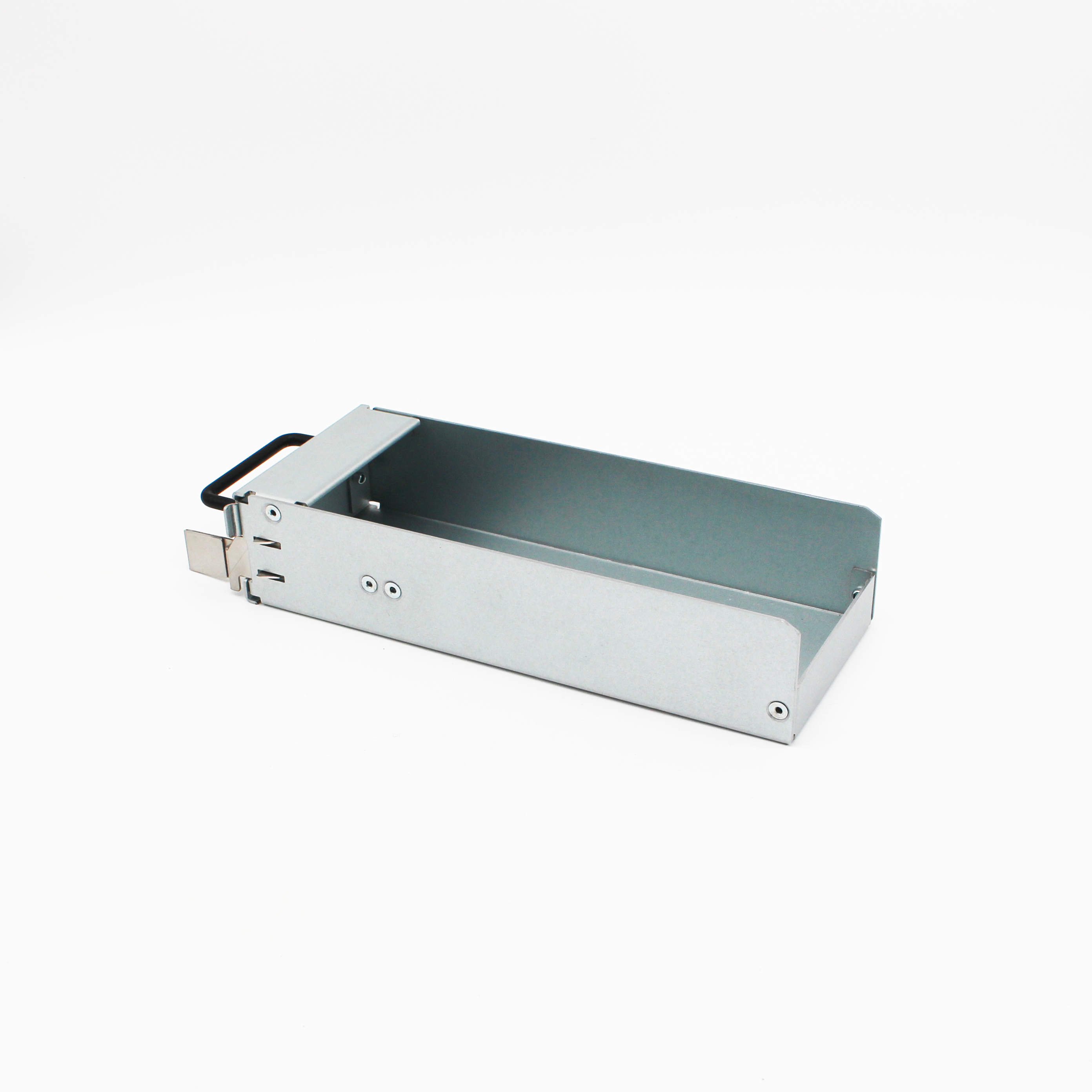

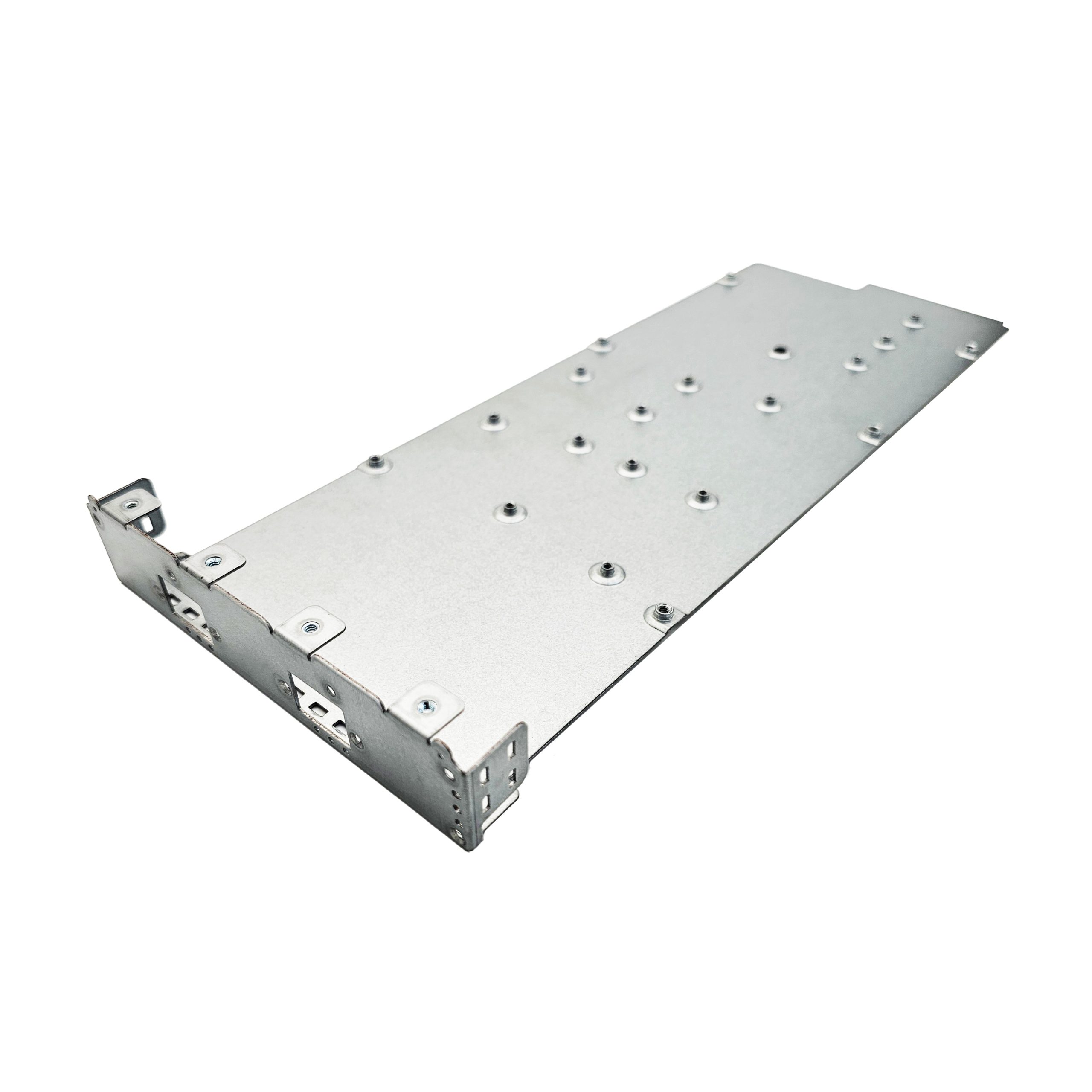

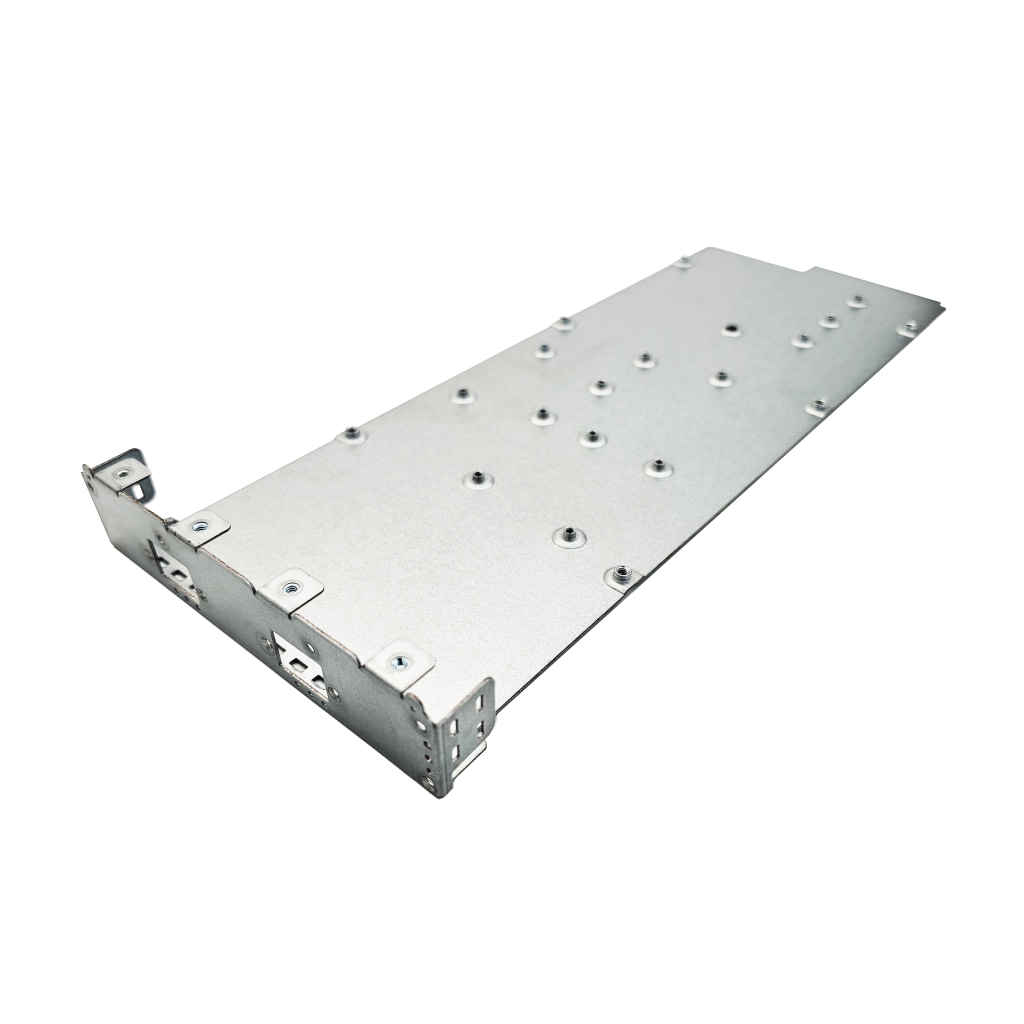

Product Information

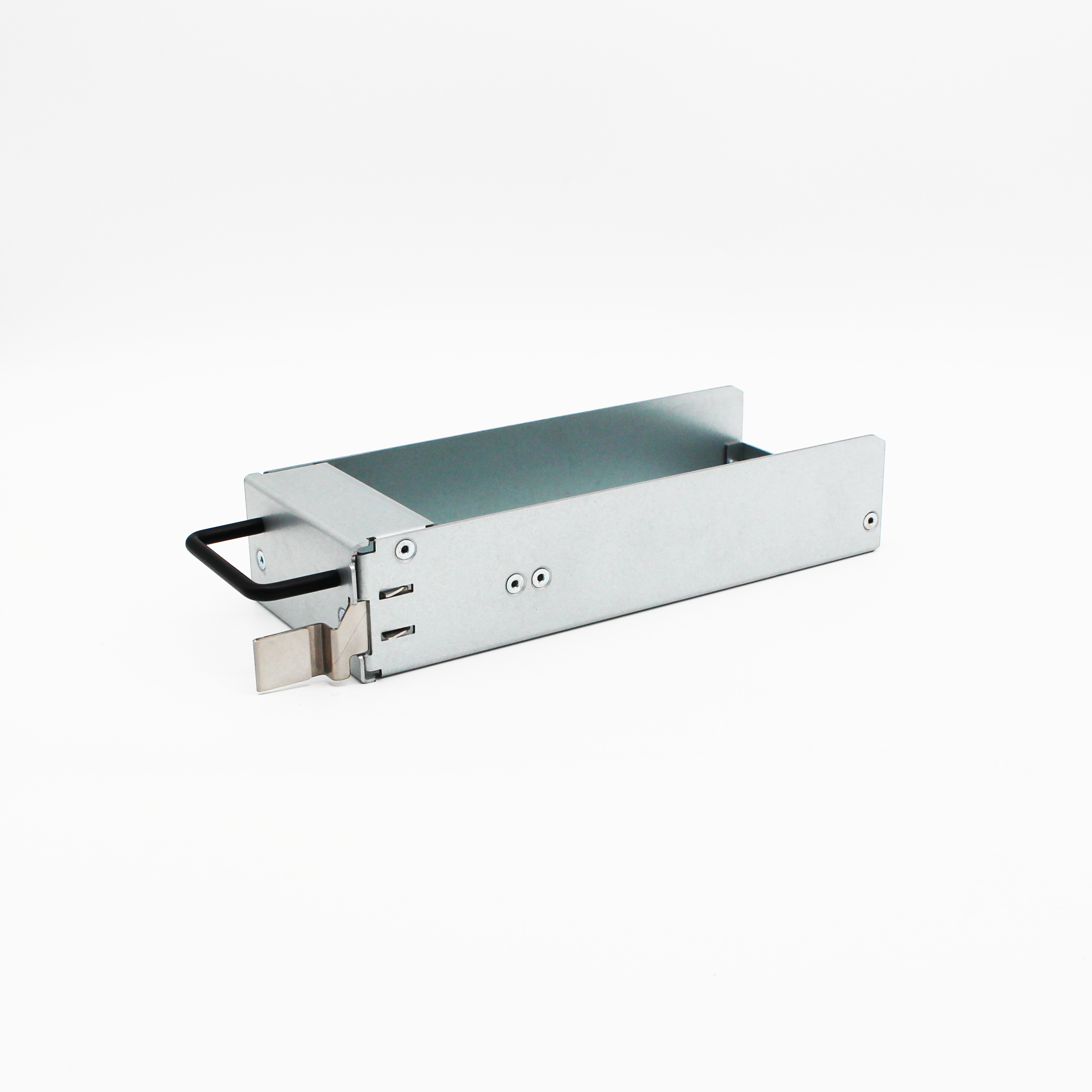

- Process: Bending
- Material: Aluminum 5052
- Application: Power Supply
- Finish: Clear Anodizing

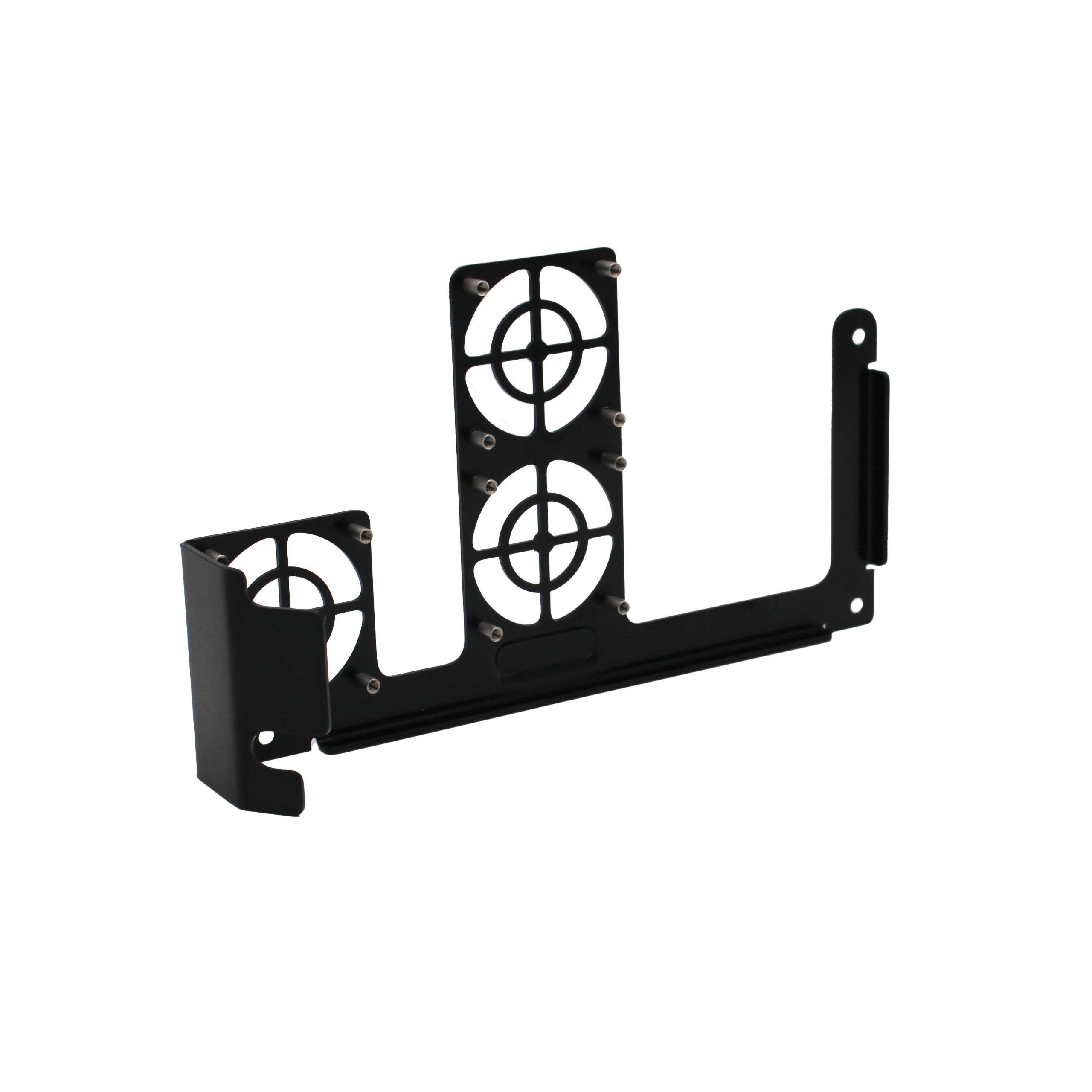

- Part No: 10.08.00015

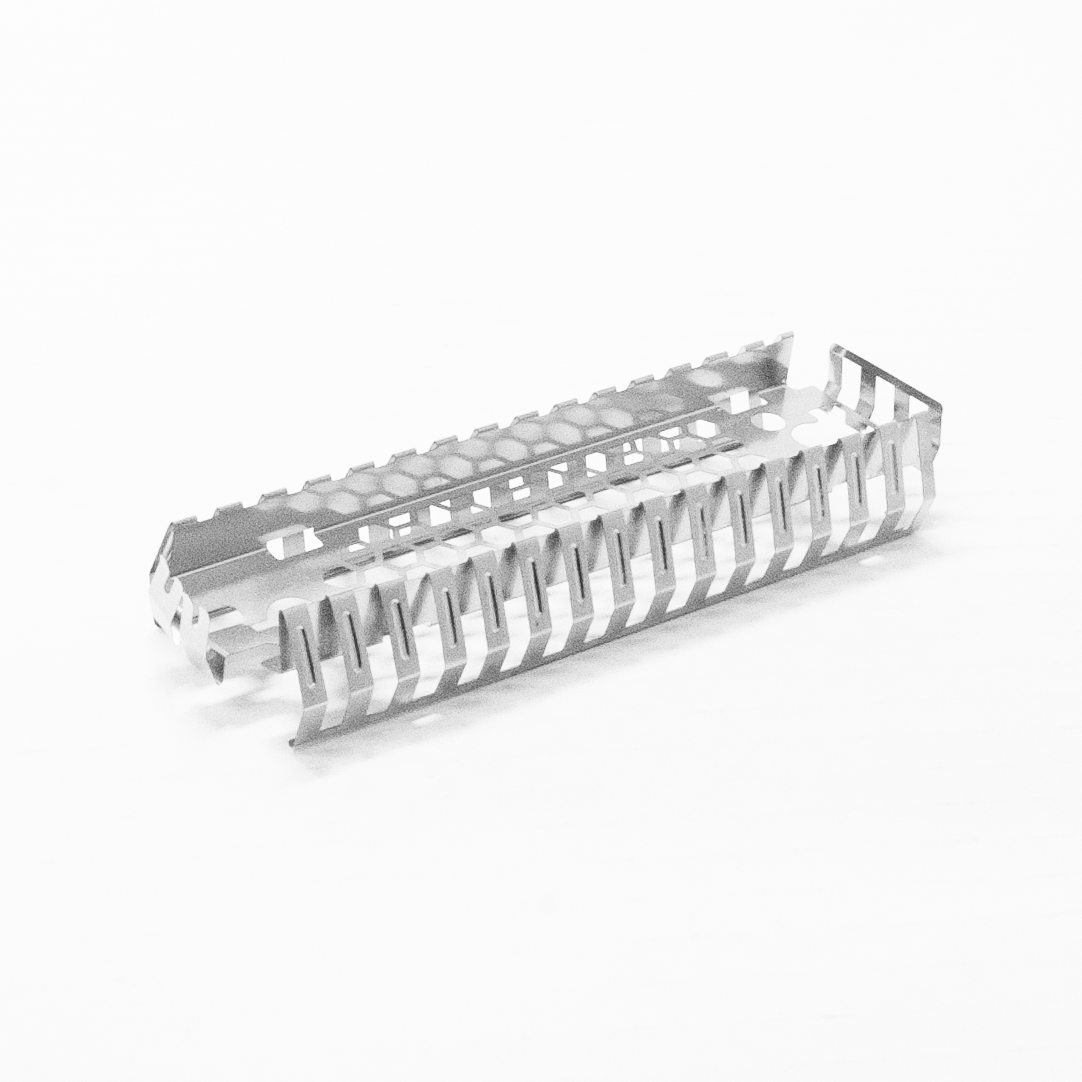

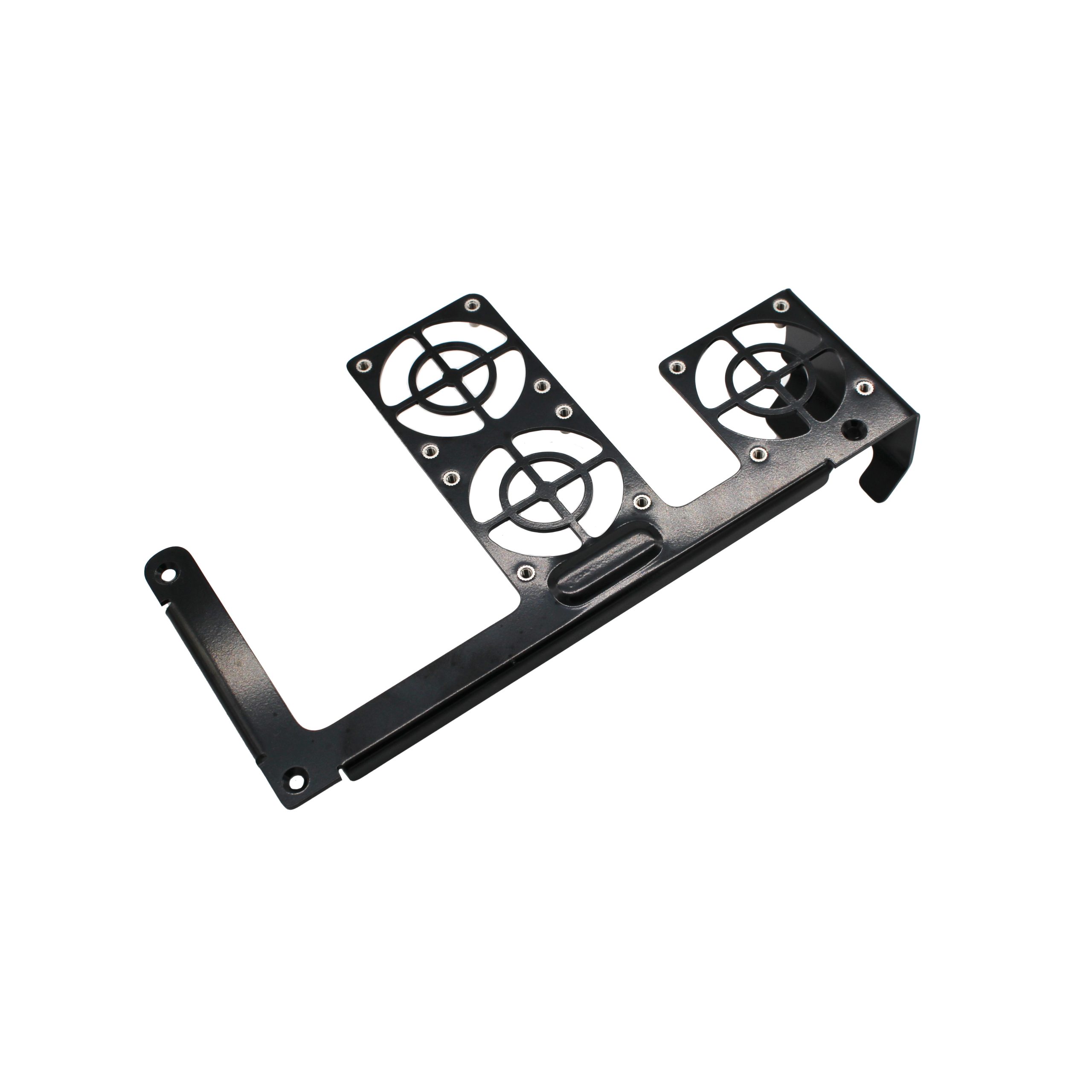

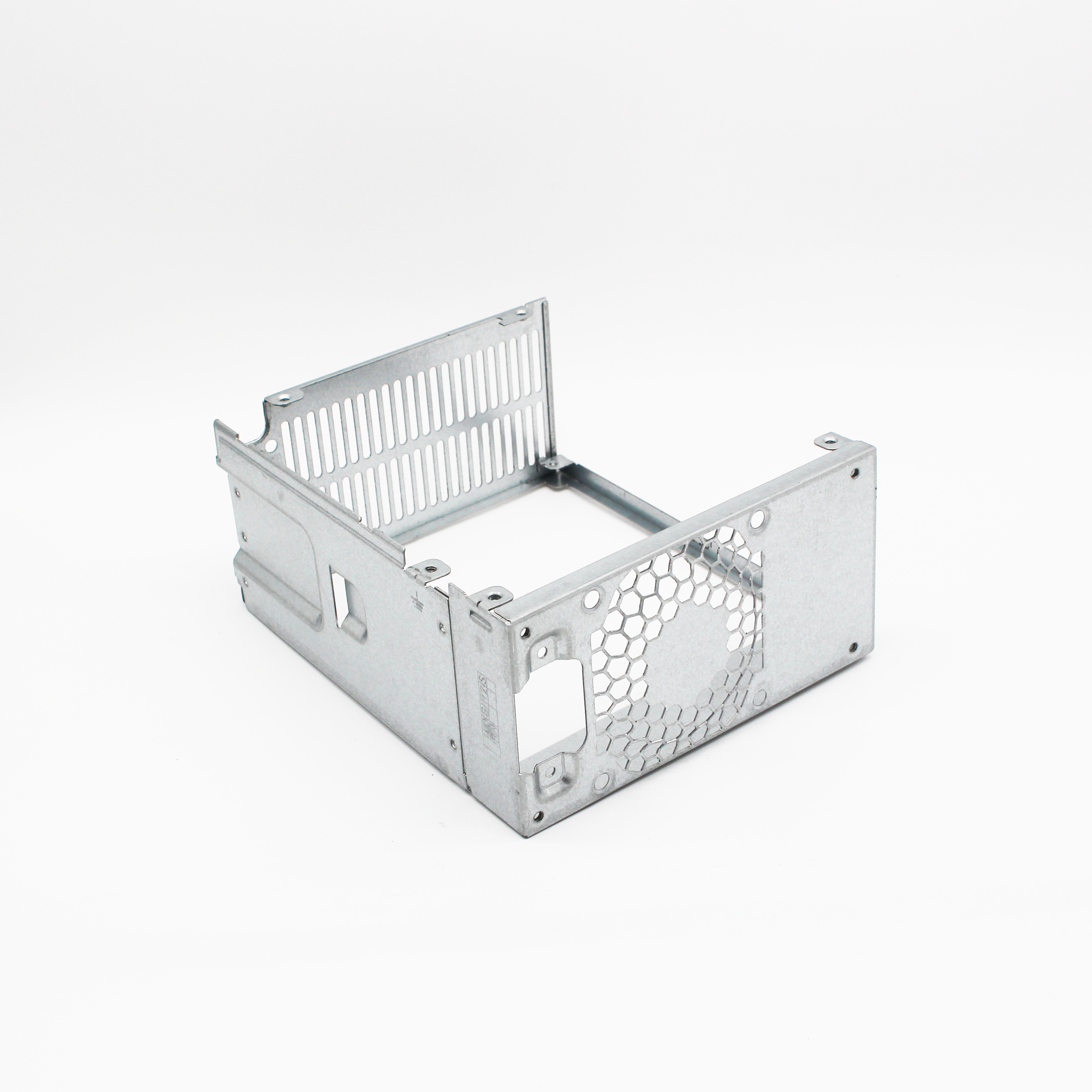

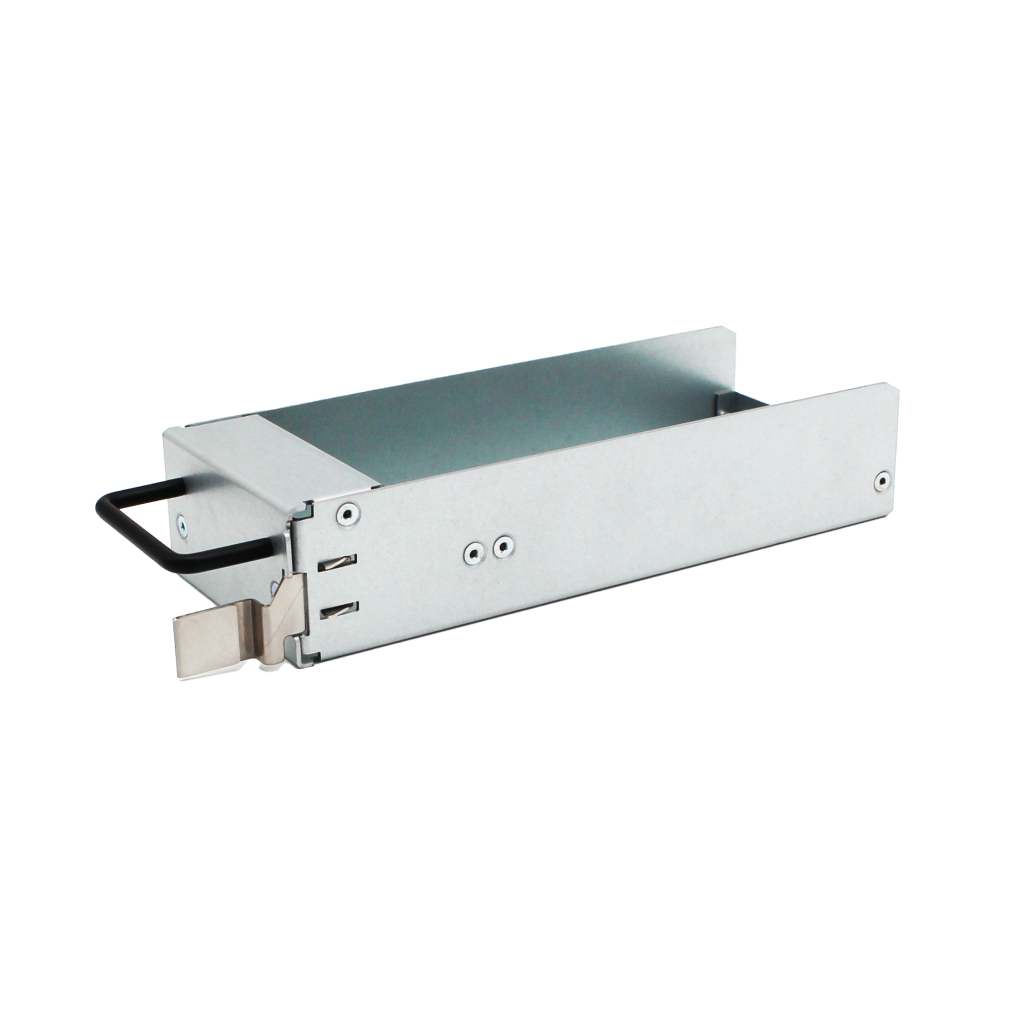

Product Information
- Process: Bending, Punching
- Material: Aluminum 5052
- Application: Power Supply
- Finish: Anodizing
- Part No: 10.07.00019

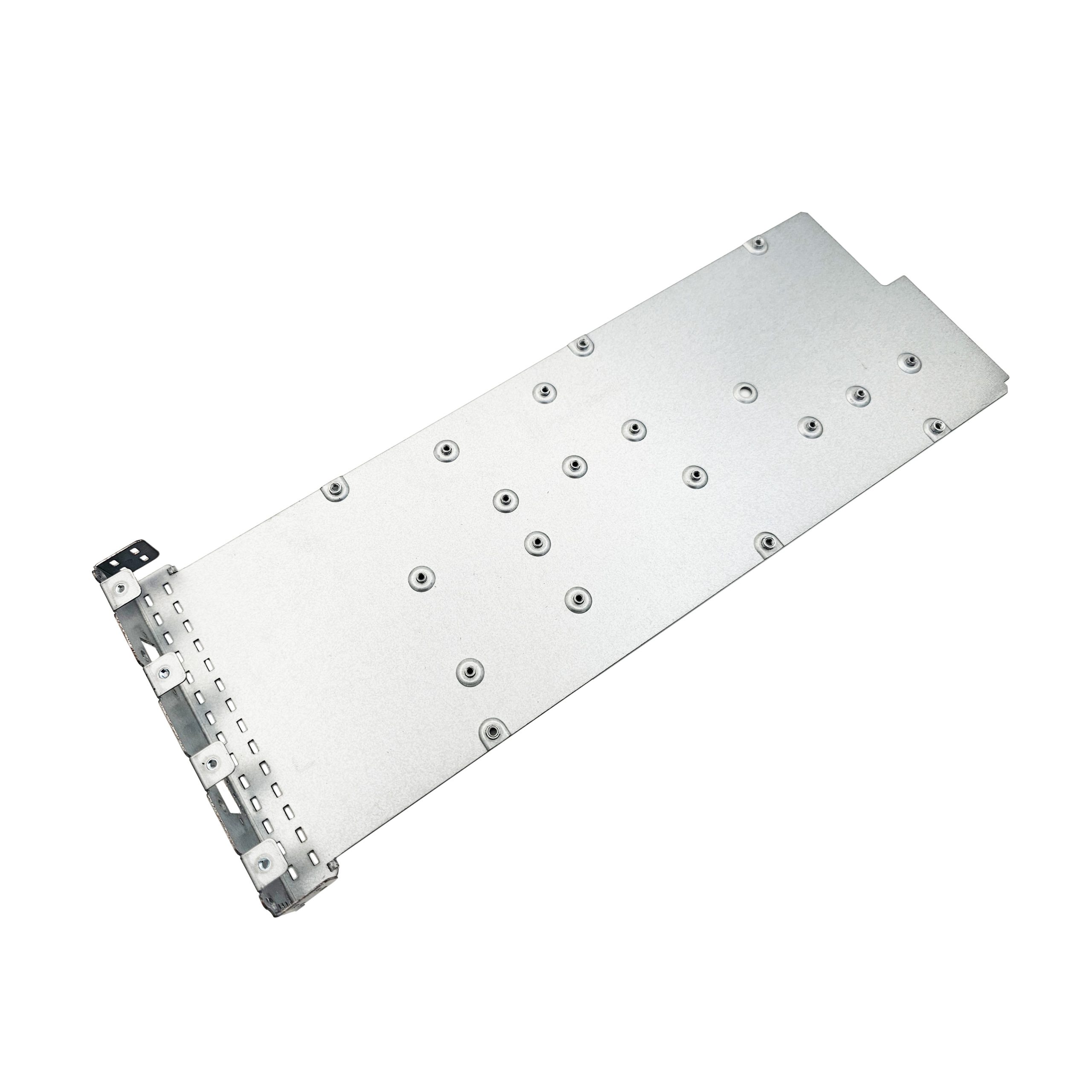

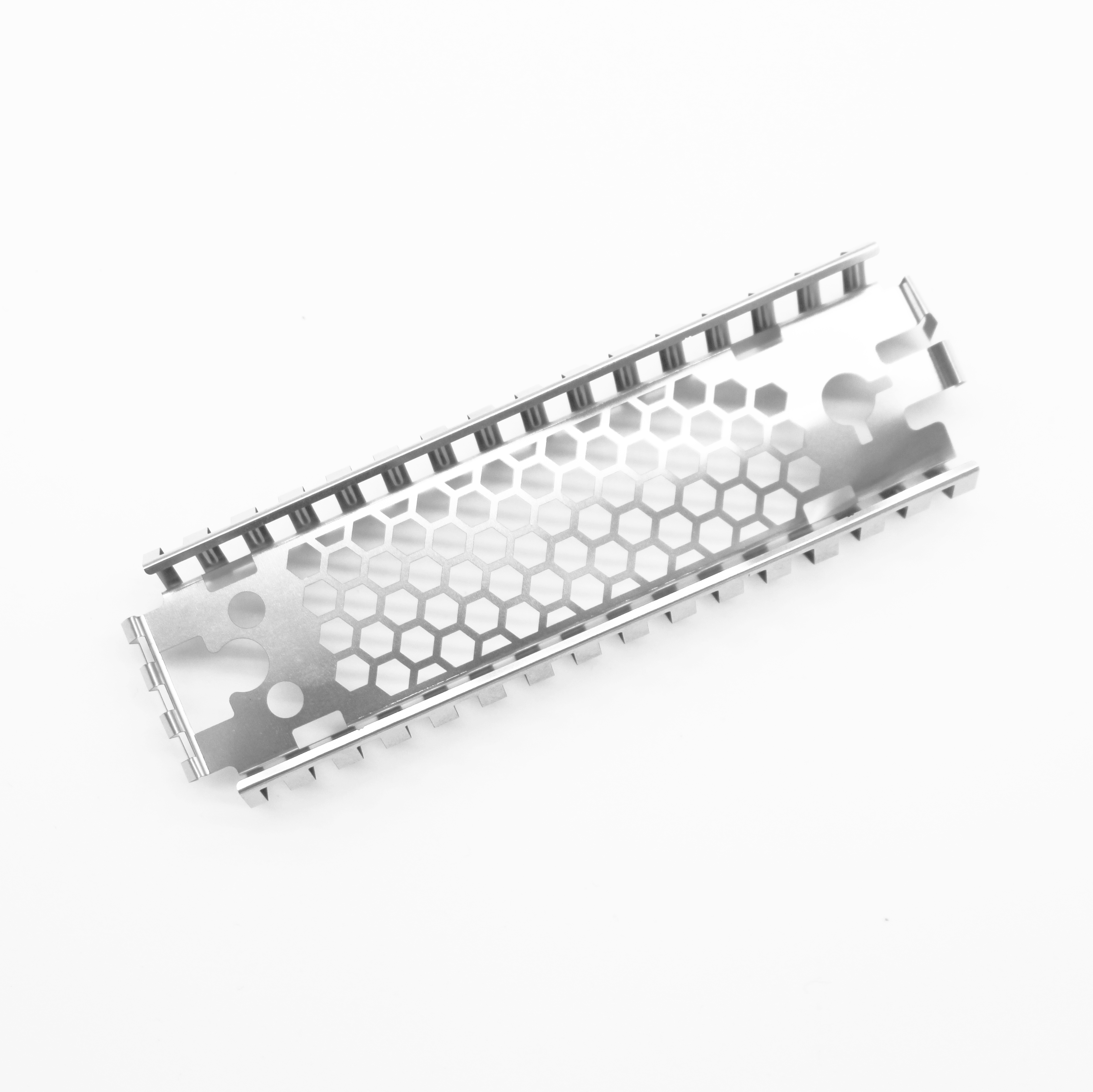

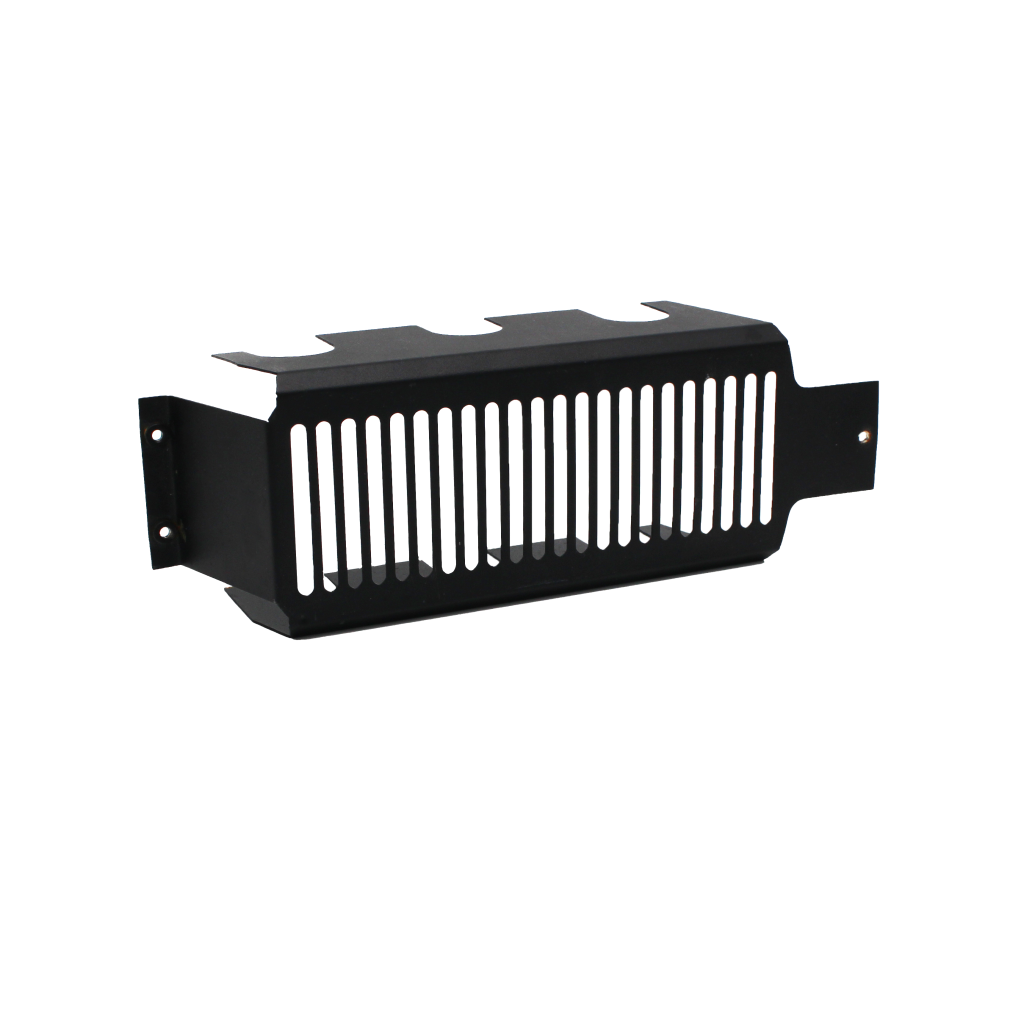

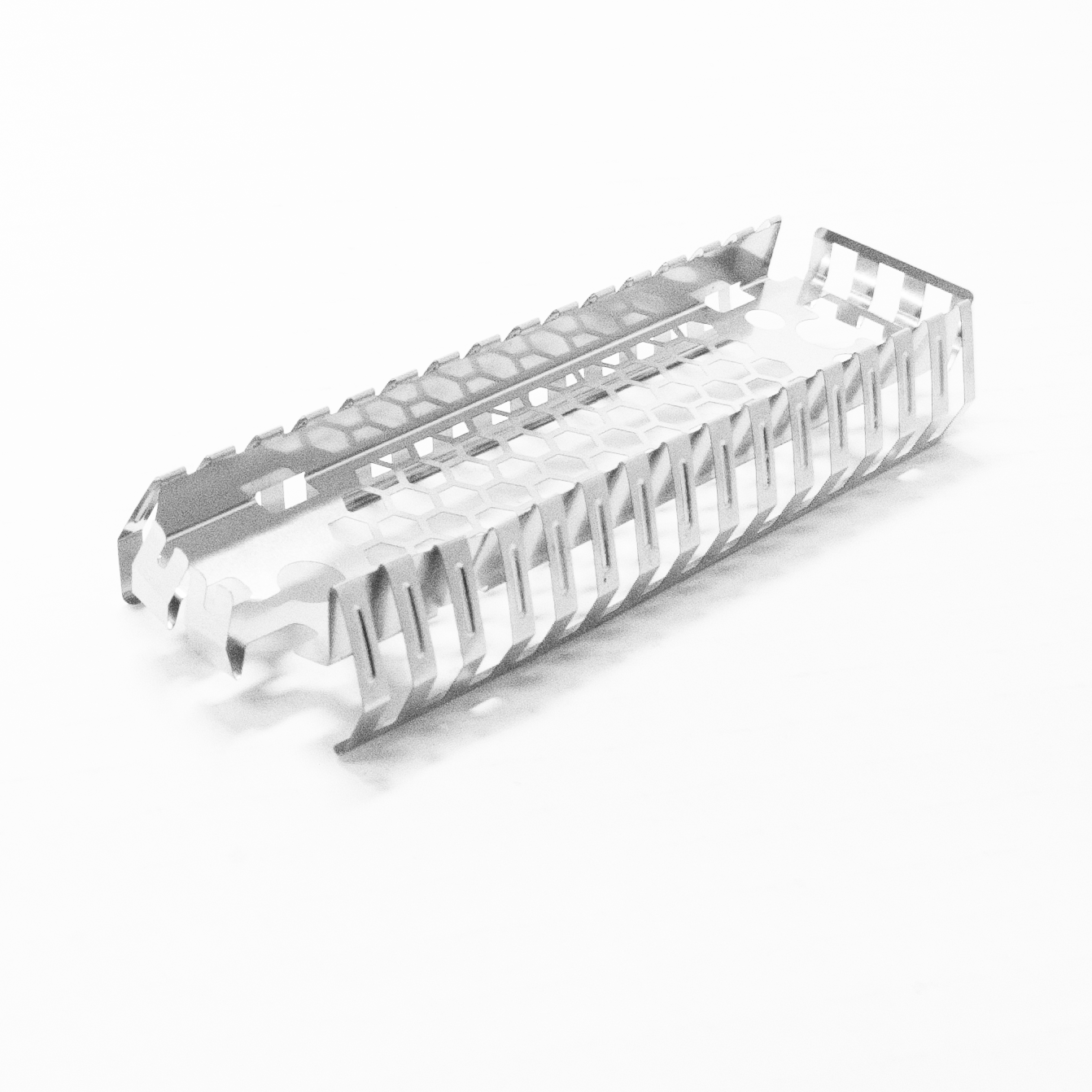

Product Information
- Process: Bending, Cutting
- Material: Aluminum 5052
- Application: Power Supply
- Finish: Clear Anodizing
- Part No: 10.04.00029
Product Information
- Process: Bending, Punching
- Material: Aluminum 5052
- Application: Power Supply
- Finish: Clear Anodizing
- Part No: 10.07.00031
Product Information
- Process: Bending, Punching
- Material: Aluminum 5052
- Application: Power Supply
- Finish: Clear Anodizing
- Part No: 10.08.00042
− Cofan's Sheet Metal −
− Cofan's Sheet Metal Processes −
Sheet Metal
15 Videos

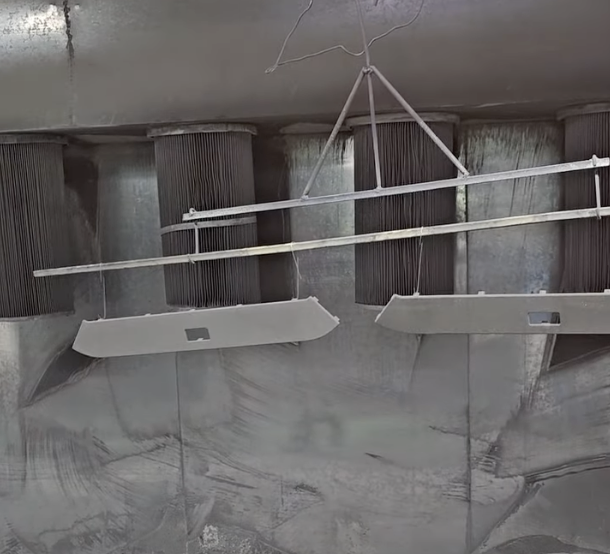

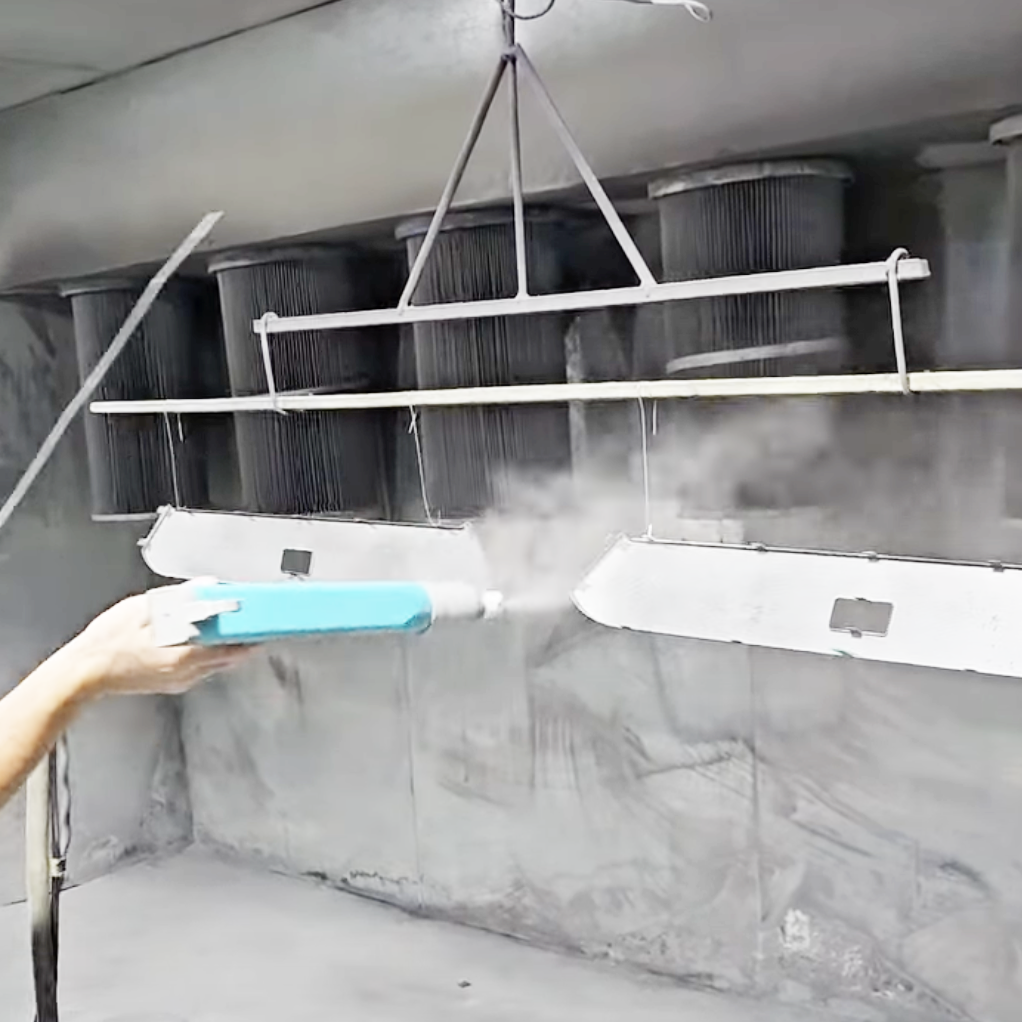

− Cofan's Powder/Oil Coating Processes −
Powder/Oil Coating
10 Videos
− Concepts of sheet metal processing −

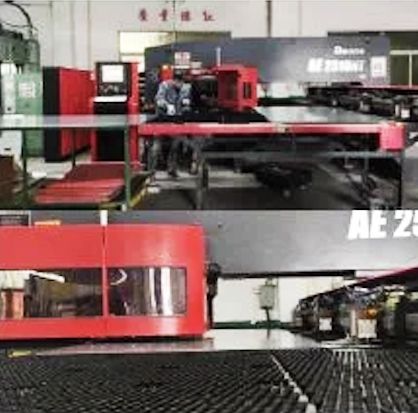

NCT Punching

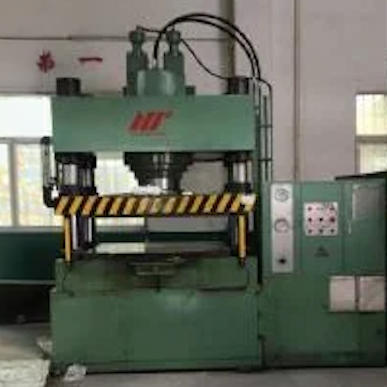

Stretching

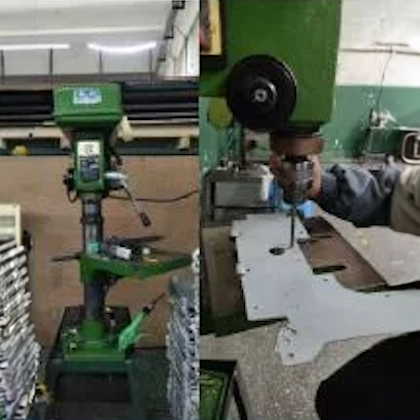

Chamfering

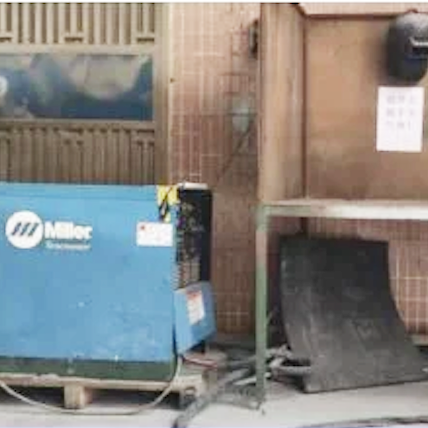

Argon Welding

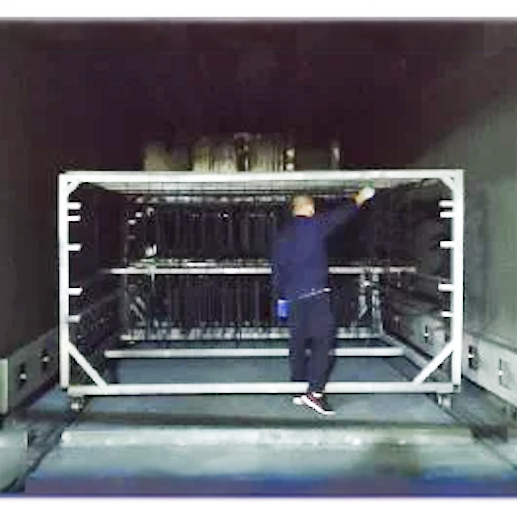

Curling

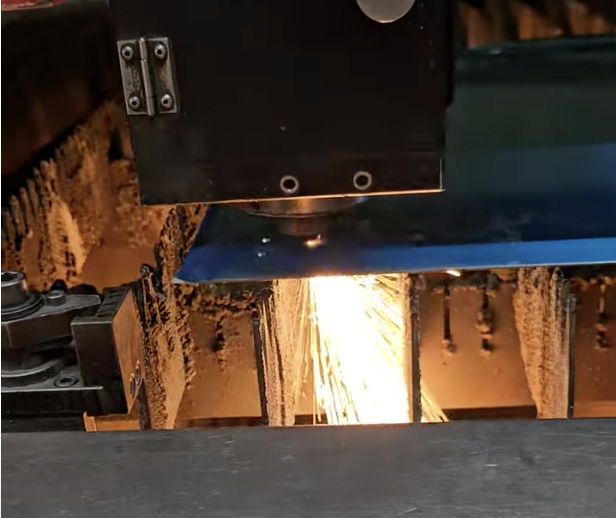

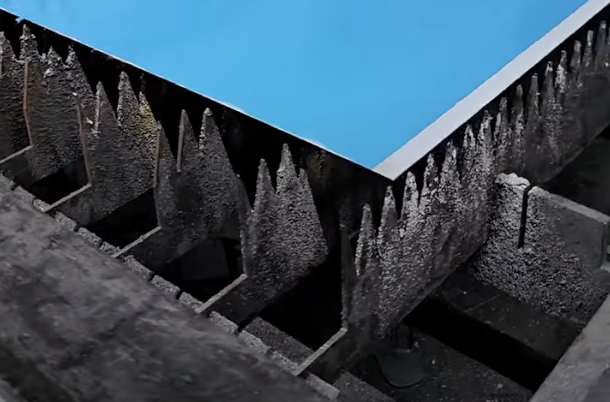

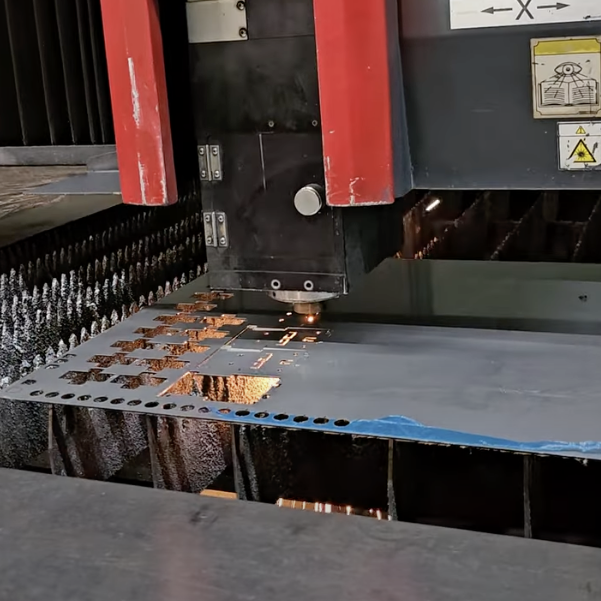

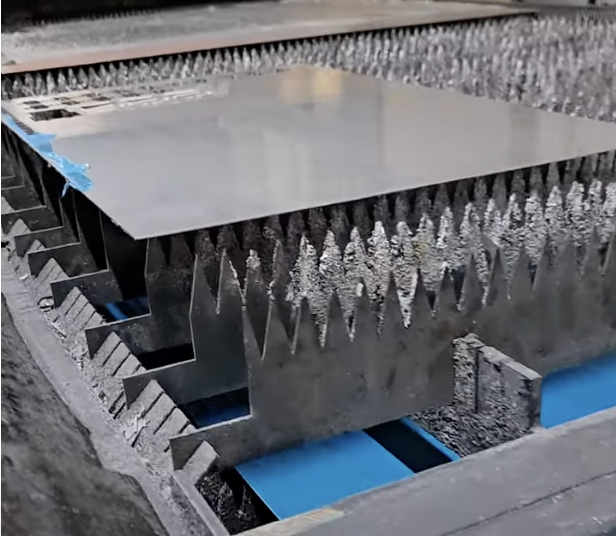

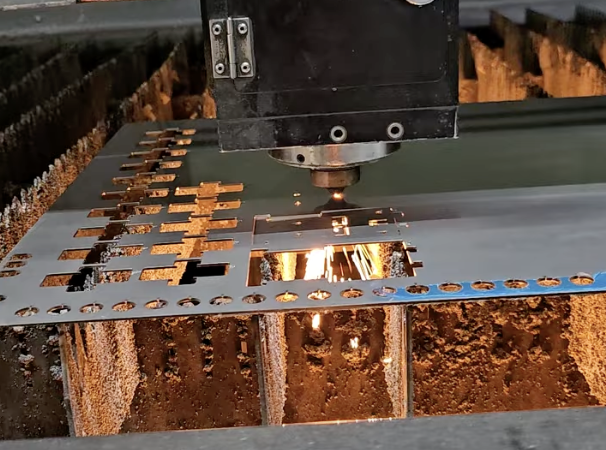

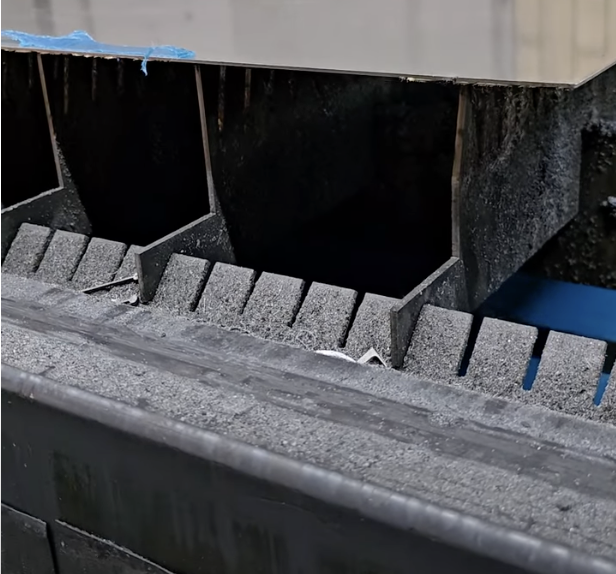

Laser Cutting

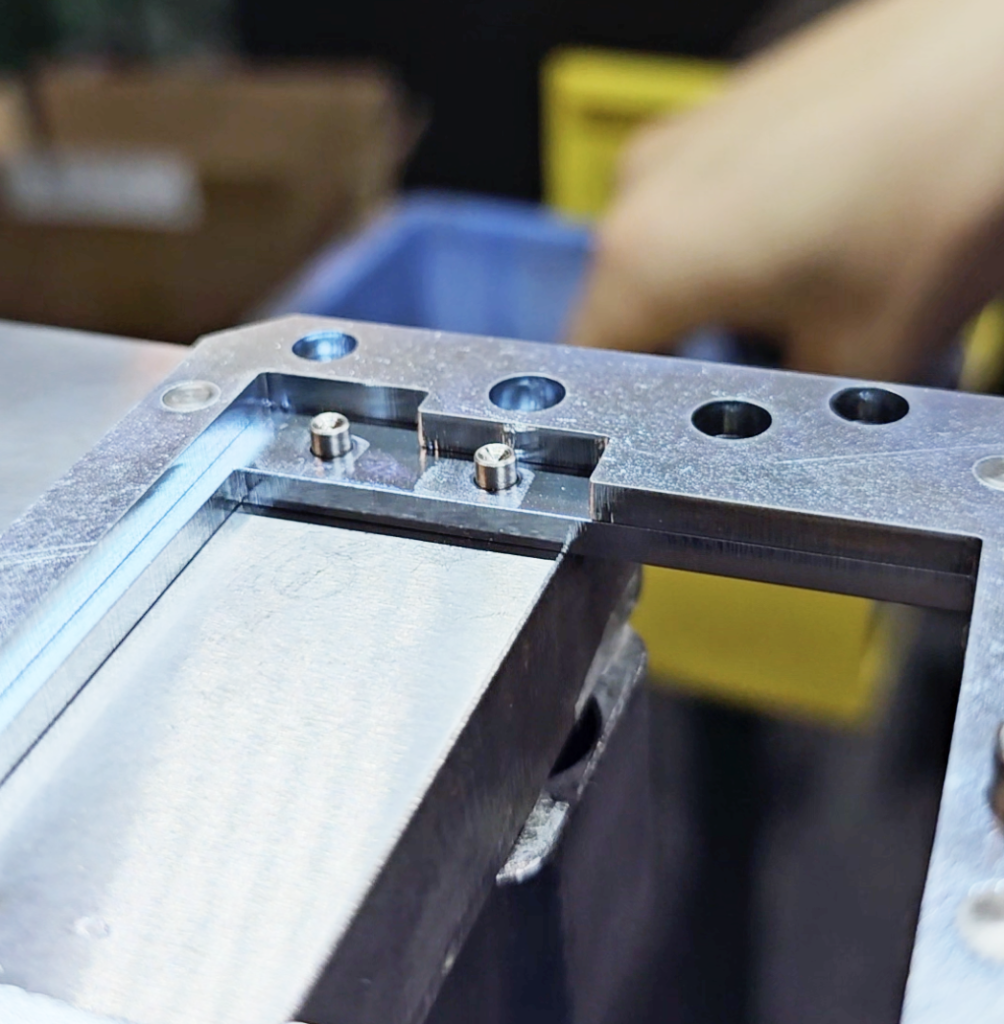

Rivet Install

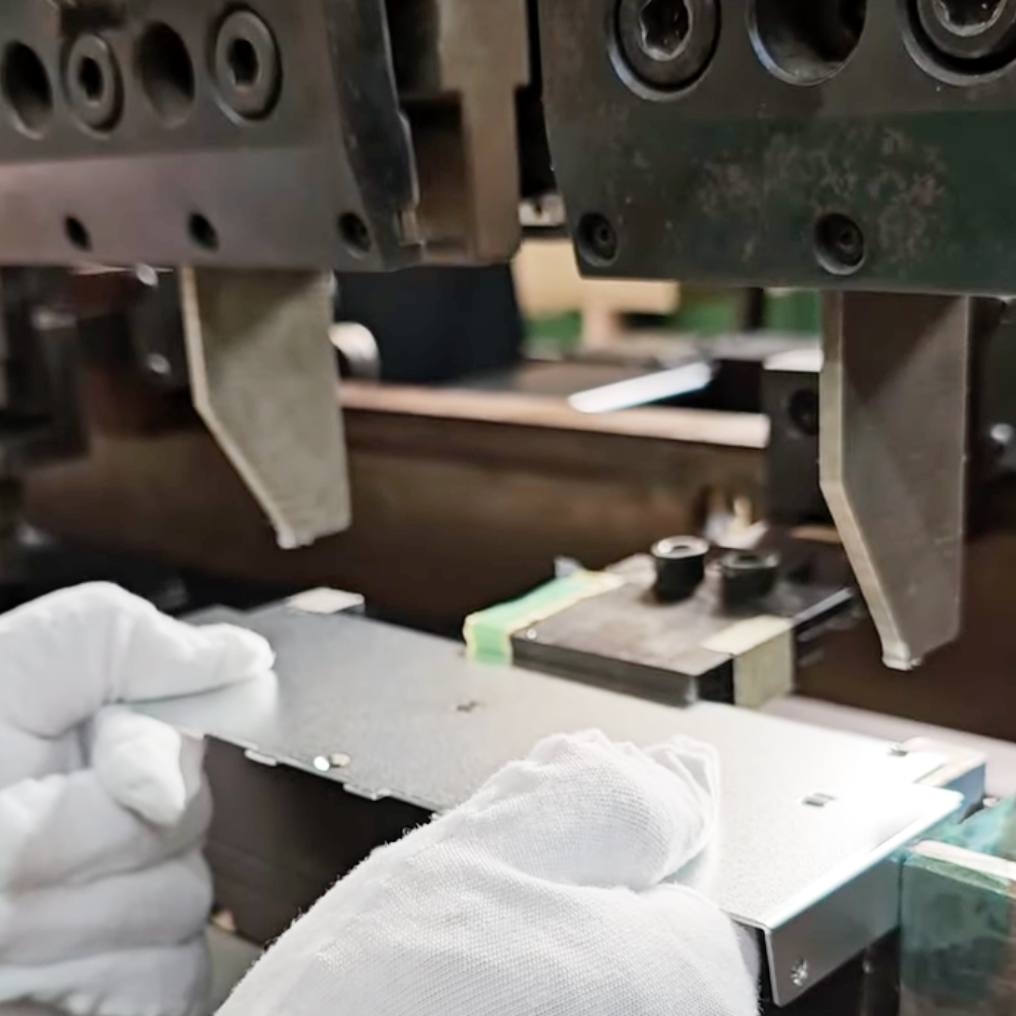

Bending

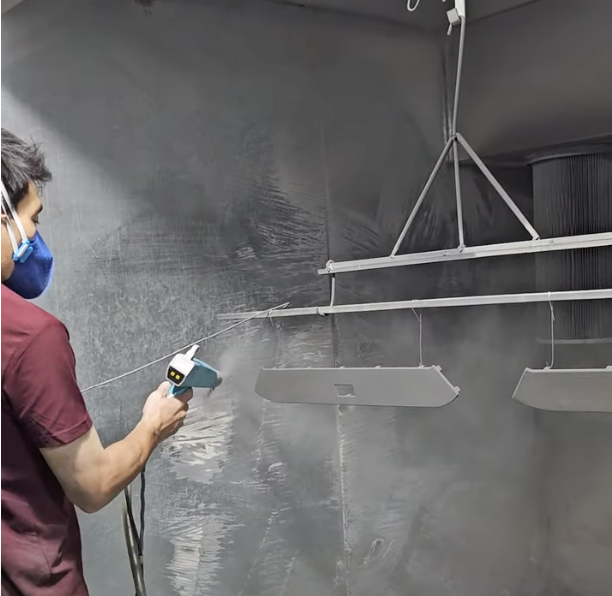

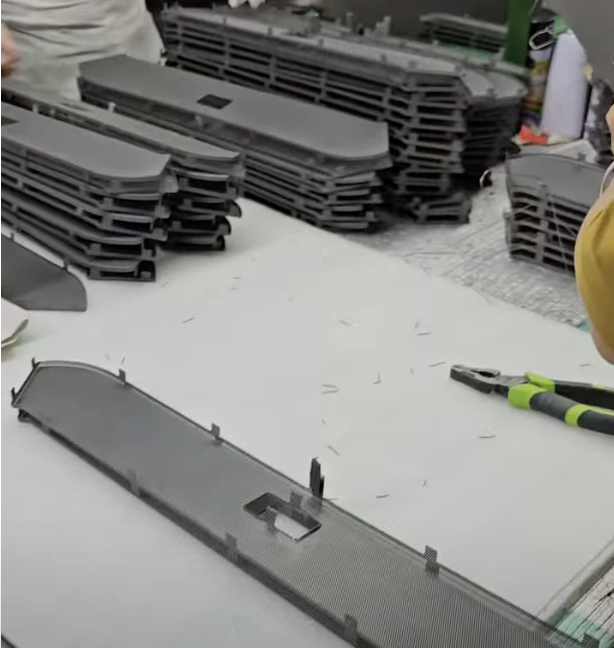

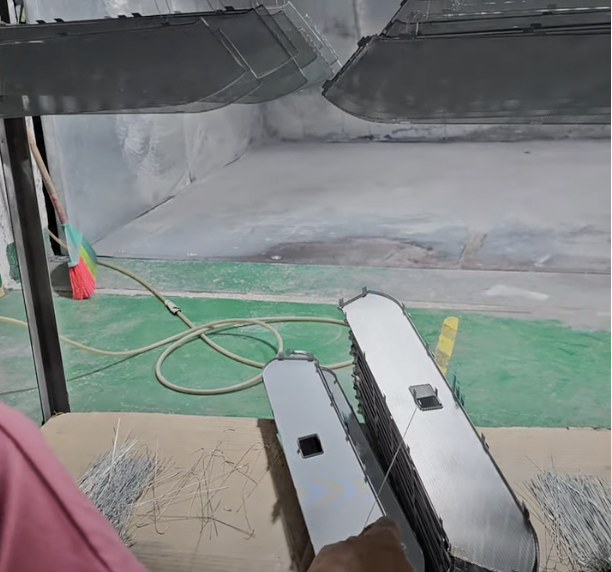

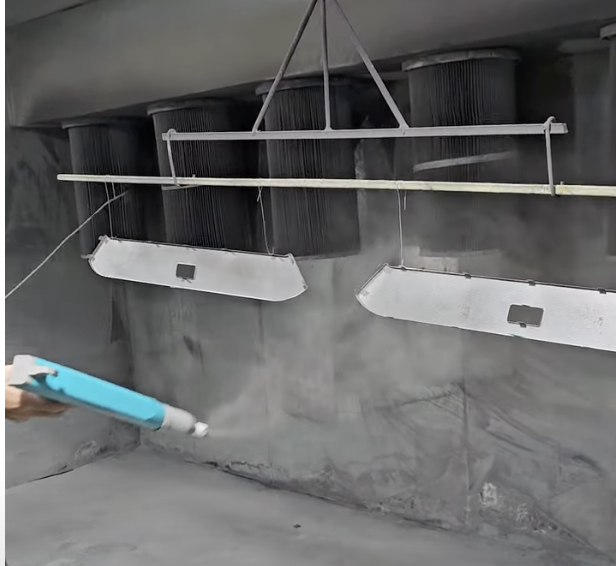

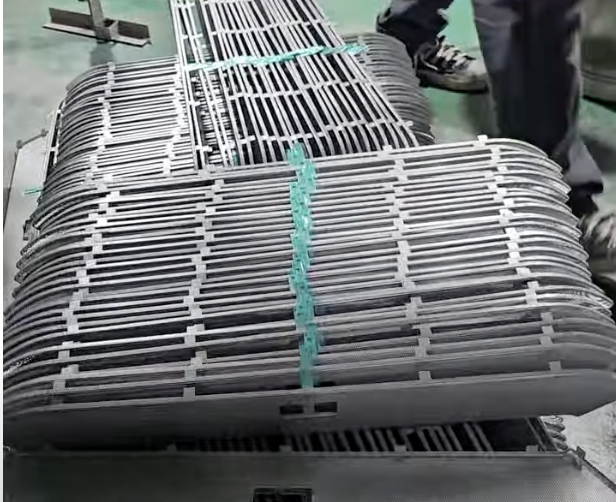

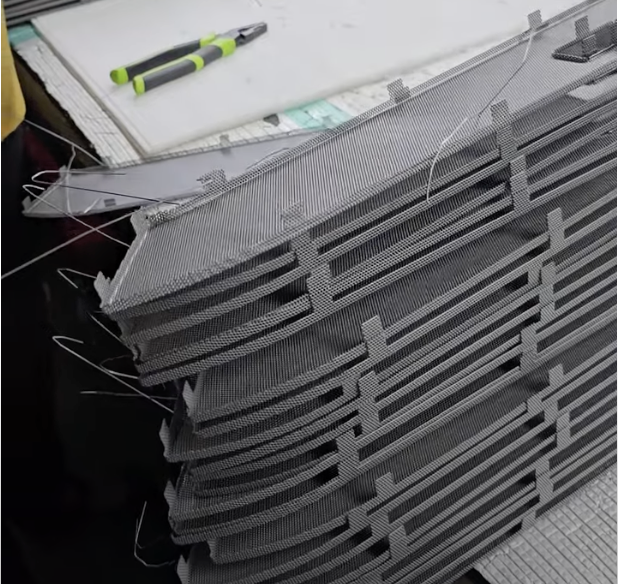

Powder Coating

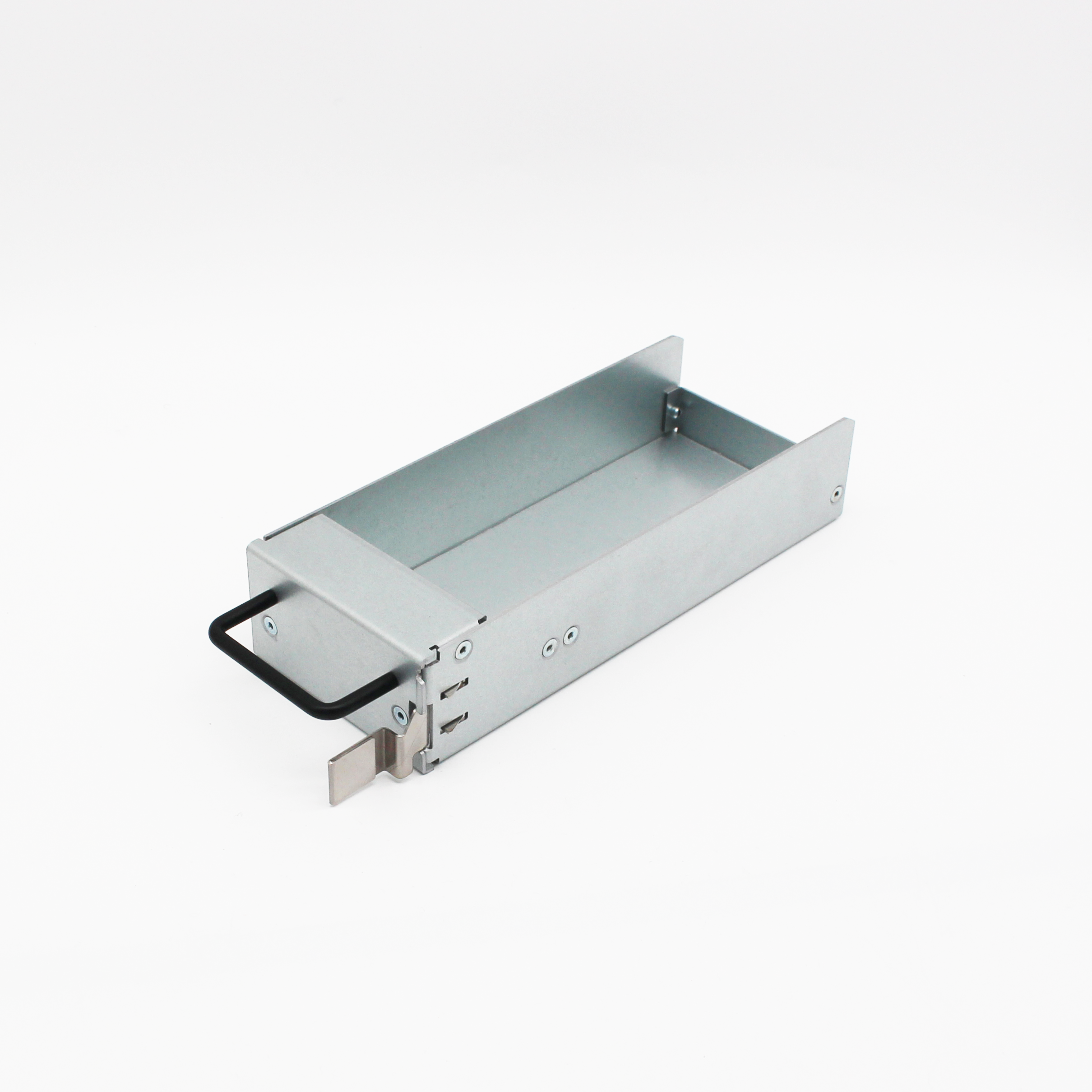

Finished Product
− Cofan's machines −
|
Sheet Metal Machines List
|
|
|---|---|
|
Machine Name
|
Brand
|
|

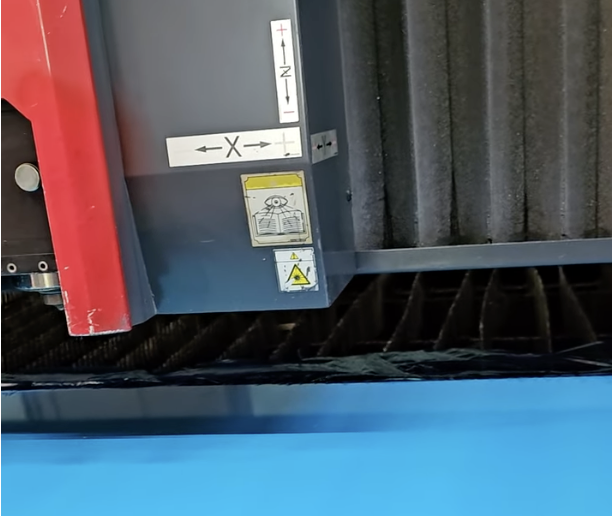

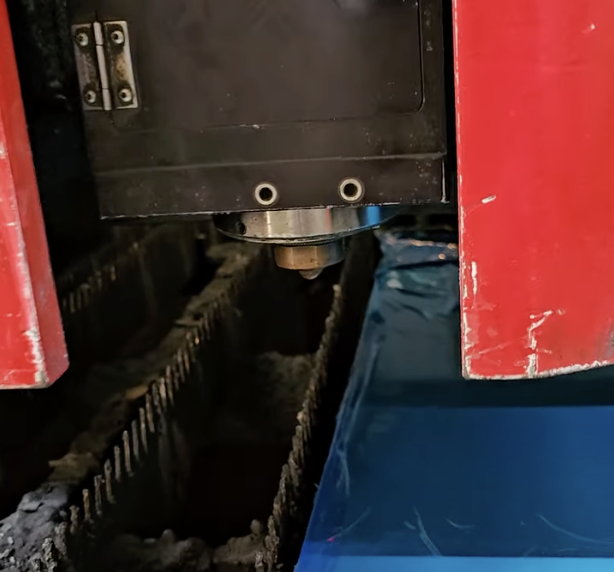

Laser Cutting
|
Mitsubishi ML3015
|
|
NCT
|
AMODA AE2510
|
|
Bending
|
FMB - 4015 M5012 Sm-1680 |
|
Riveting
|
Local Brand x 4 ea
|
|
Welding
|
Local Brand x 1 ea
|
|
Drill
|
ZQ4113 ZQ4116 |
|
Tapping
|
SWJ - 6
|
|
Press
|
HTH - 300 x 2ea SPEC. JH - 100 |
|
Laser Engraving
|
DP - FC - 20 - JM
|
|
Painting
|
Out - Sourcing
|

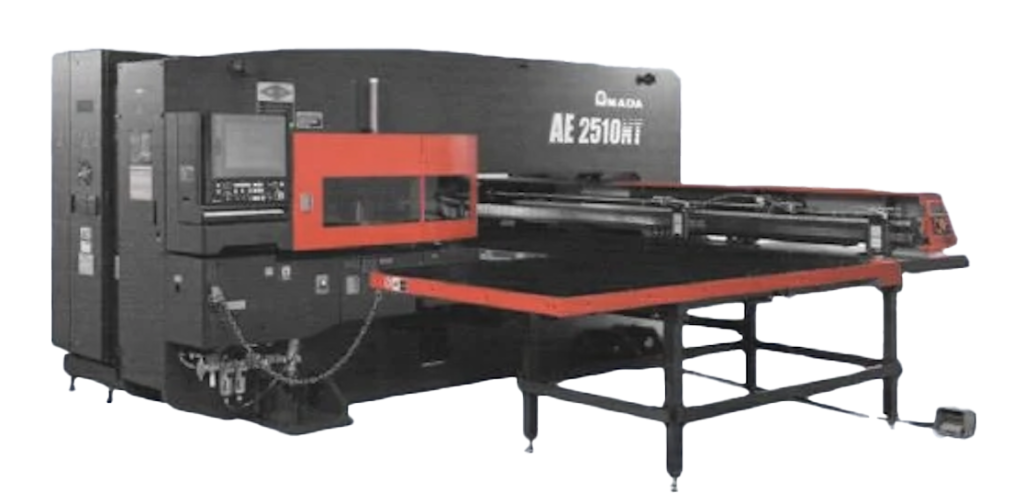

NCT Machine:AMDA AE-2510NT
|
Machine Name
|
Amada AE-2510NT
|
|---|---|
|
Punching Capacity (KN)
|
200
|
|
Driving Mode
|
AC Servo Drive
|
|
Maximum Machined Plate Thickness (mm)
|
3.2 (Brush Table) 6.4 (High-Density Brush) *Optinal |
|
Axismovement (mm)
|
1270 x 2500
|
|
Maximum Axis Movement Speed (m/min)
|
X :80, Y:60
|
|
Maximum Workpiece Mass (kg)
|
50 (F1), 150 (F4)
|
|
Punching Speed (min-1)
|
X:50, Y:280 (Stroke = 5mm, Spacing = 25.4mm) |
|
Engraving (min-1)
|
900
|
|
Machining Accuracy (mm)
|
± 0.1 (Softmode 0.07)
|
|
Turret Rotation Speed (min-1)
|
30
|
|
Al Rotation Speed (min-1)
|
60
|
|
NC Device
|
AMNC/ PC
|
|
Power Supply Capacity (kVA)
|
19
|
|
Average Power Consumption (kW)
|
4.5
|
|
Maximum Airconsumption (NL/min)
|
750
|
|
Machine Weight
|
12500
|

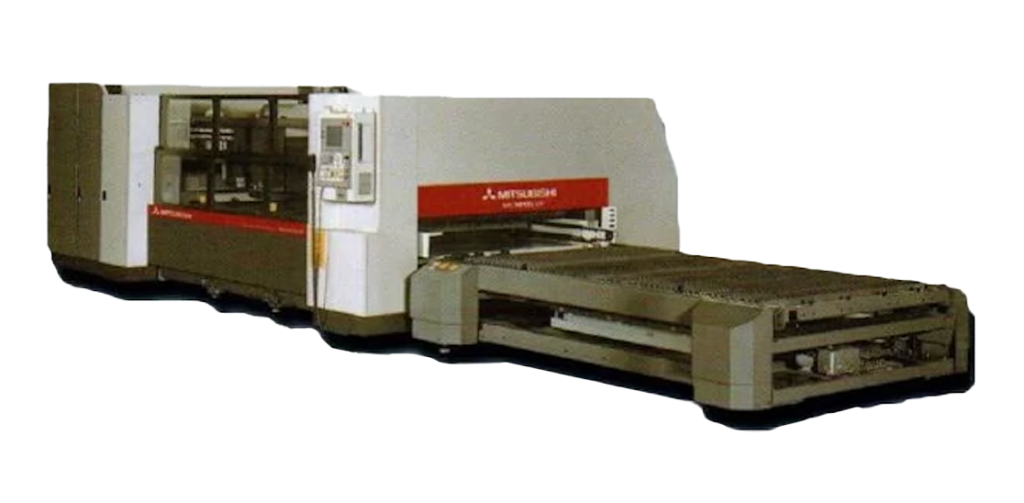

Laser Machine:MITSUBISHI ML3015LVP-35CF-R
|
Machine Name
|
MITSUBISHI ML3015LVP-35CF-R
|
||
|---|---|---|---|
|
Moving Mode
|
Flight Path (3-Axis Light Movement)
|
||
|
Control Mode
|
X-Y-Z Simultaneous 3 Axis (Z-Axis can be copied control) |
||
|
Indicators/ Performance |
Maxium Workpiecee Size (mm)
|
3050 x 1525
|
|
|
Table Bearing Weight (Kg)
|
690
|
||
|
Job Support Height (from ground level) (mm)
|
850
|
||
|
Switching Table
|
Yes
|
||
|
Travel Length (X/Y/Z - axis) (mm)
|
3100/1550/120
|
||
|
Speed
|
Max. Positioning (m/min)
|
Max 85 (X,Y single axis)
|
|
|
Max. Machining Positioning (m/min)
|
30
|
||
|
Accuracy
|
Positioning Accuracy (mm)
|
0.050/500 (x,y-axis, 0.1/100 or less (Z-axis)
|
|
|
Repeated Positioning Accuracy (mm)
|
± 0.010 (X,Y -axis)
|
||
|
Machining Head (Machining Lens) (mm)
|
⦶50.8 (⦶2.0") *f190.5(f7.5")
|
||
|
Configurable Vibrator
|
ML35CF-R
|
||
|
Power Required (kVA)
|
8
|
||
|
Net Weight (KG)
|
Processing Machine Body
|
About 9900
|
|
|
Switched Section
|
About 1800
|
||

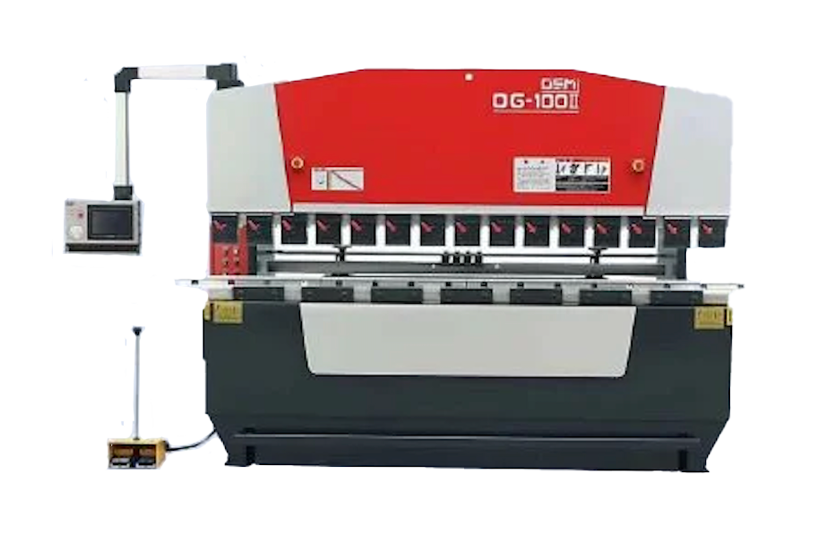

Bending Machine: OSM OG-100 ||
|
Machine Name
|
Bending Machine: OSM OG-100 ||
|
|---|---|
|
Pressure KN (tons)
|
1000 (100)
|
|
Bending Length (mm)
|
3100
|
|
Table Travel (mm)
|
100
|
|
Number of Cylinders
|
3
|
|
Rising Speed (mm/s)
|
50 ~ 63
|
|
Bending Speed (mm/s)
|
1 ~ 13
|
|
Decreasing Speed (mm/s)
|
52
|
|
Fuel Tank Capacity (L)
|
80
|
|
Motor Power (KW)
|
7.5 KW
|
|
Total Motor Power (KW)
|
8.5 KW
|
|
Input Wire (mm2)
|
10
|
|
Machine Weight (kg)
|
6800
|

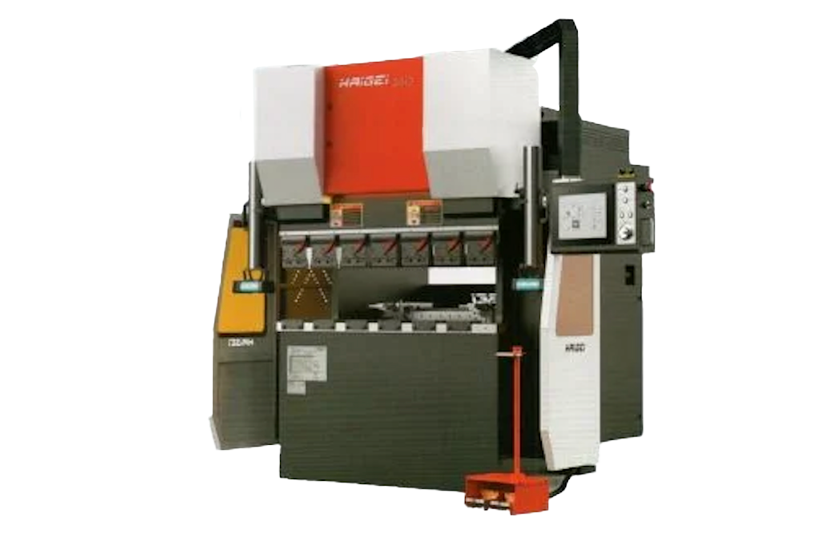

Bending Machine: HEIGEI EG3613
|
Machine Name
|
HEIGEI EG 3613
|
|---|---|
|
Bending Pressure
|
360Kn (36T)
|
|
Pressurized Drive Mode
|
Serve Motor + Heavy Load Lead Screw
|
|
Machine Bend Length
|
1300 mm
|
|
Countertop Height
|
870mm
|
|
Throat Depth / Height
|
300mm / 420mm
|
|
Total Bend Stroke
|
150mm
|
|
Width of The Inside of The Rack
|
960mm
|
|
Number of Machine Axes
|
6
|
|
D-Axis Descent/ Ascent Speed
|
0 ~ 120 mm/s
|
|
D-Axis Pressurization Speed
|
0 ~ 100 mm/s
|
|
L-Axis Travel Speed
|
500 mm / 0 ~ 200 mm/s
|
|
Z-Axis Travel Speed
|
130 mm / 0 ~ 200 mm/s
|
|
Backstabbing Refers to The Number
|
2
|
|
Control System
|
Bending & HEIGEI
|
|
Display Controls
|
10 inch TFT
|
|
Power Capacity
|
220V 13.5KW
|
|
Device Form Factor
|
2000 x 1400 x 2350
|
|
Total Equipment Weight
|
3.3 T
|
− Specification −
|
Item
|
Desc.
|
Remark
|
|
|---|---|---|---|
|
Materials
|
Aluminum, Steel, Brass, Stainless Steel
|
The sense of copper cannot be processed by the laser machine due to reflection of copper mirror. |
|
|
Thickness Range
|
NCT
|
Aluminum : 5.0mm Steel : 3.0mm SUS : 2.0mm Copper : 3.0mm |
All thickness are the maximum thickness that can be machined.
|
|
Laser
|
8.00mm
|
||
|
Size Range
|
NCT
|
1250 x 2500mm
|
|
|
Laser
|
3500 X 1500mm
|
||
|
Height of The Convex Point (height to the thickness ratio) |
Small Round Convex Hull
|
5 : 1
|
|
|
Vertical Convex Hull
|
3 : 1
|
||
|
Square Convex Hull
|
10:1
|
||
|
Minimum Machining Tolerance
|
NCT
|
± 0.05mm
|
|
|
Laser
|
± 0.03mm
|
||
|
Bending Radius Range
|
599mm
|
|
|
|
Minimum Bending Tolerance
|
± 0.05mm
|
|
|
|
Available Welding Methods
|
Resistance Spot Welding Argon Welding Laser Welding |
|
|
|
Minimum Assembly Tolerance for Upper and Lower Cover
|
± 0.20mm
|
|
|
|
Minimum Welding Assembly Tolerances
|
± 0.40mm
|
|
|
|
Inspection Equipment
|
2.5 Dimention Projector Height Gauge Digital Caliper Vernier Caliper |
|
|
|
Painting Thickness
|
Powder
|
60 ~ 100 um
|
The existing manual spraying method can only meet the ablve data requirments. |
|
Liquid
|
15 ~ 30 um
|
||
